Features
Standard fulljet nozzle can generate full cone spray. Full jet nozzle can spray uniformly, droplets are from medium to big. This well distributed spray benefits from distinct vane design, big and clear channel, excellent control feature.

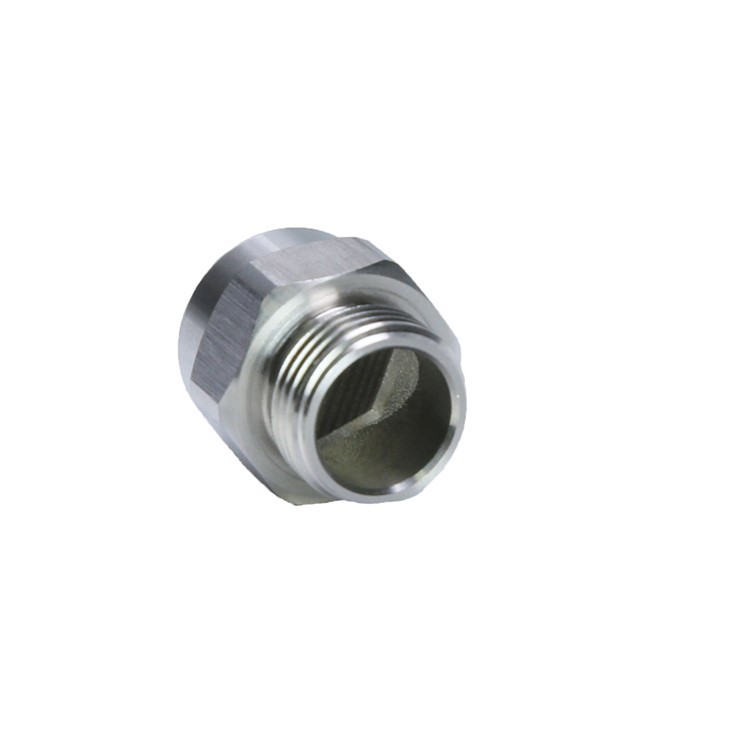

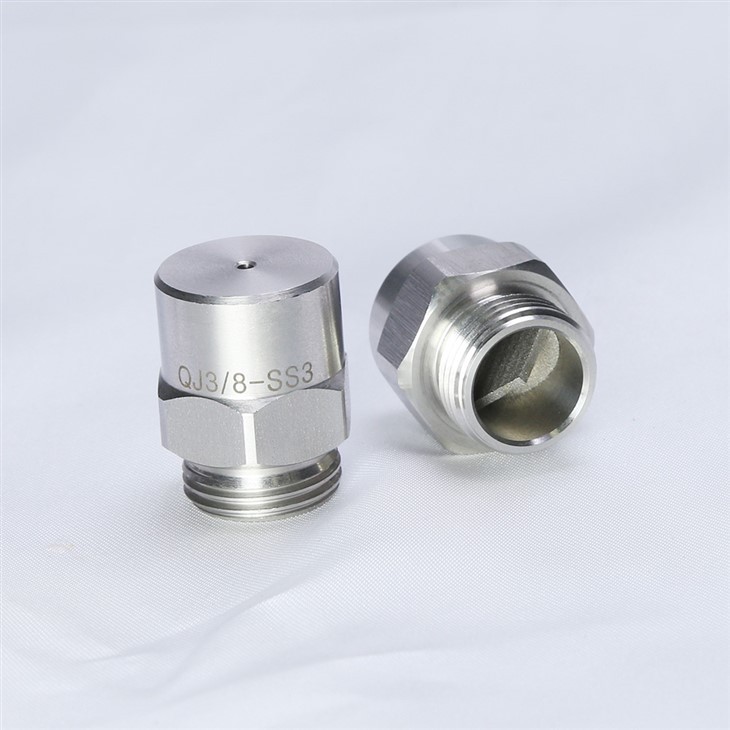

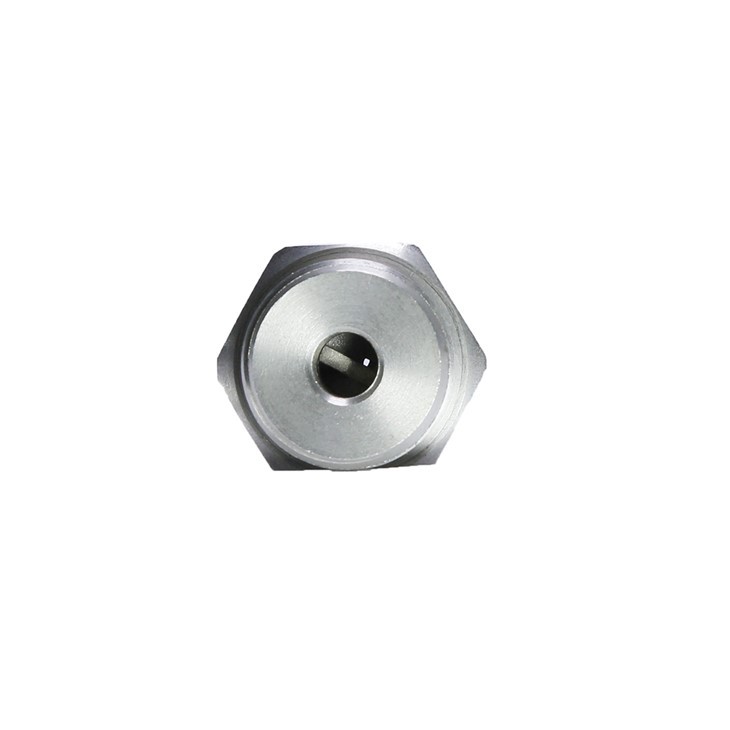

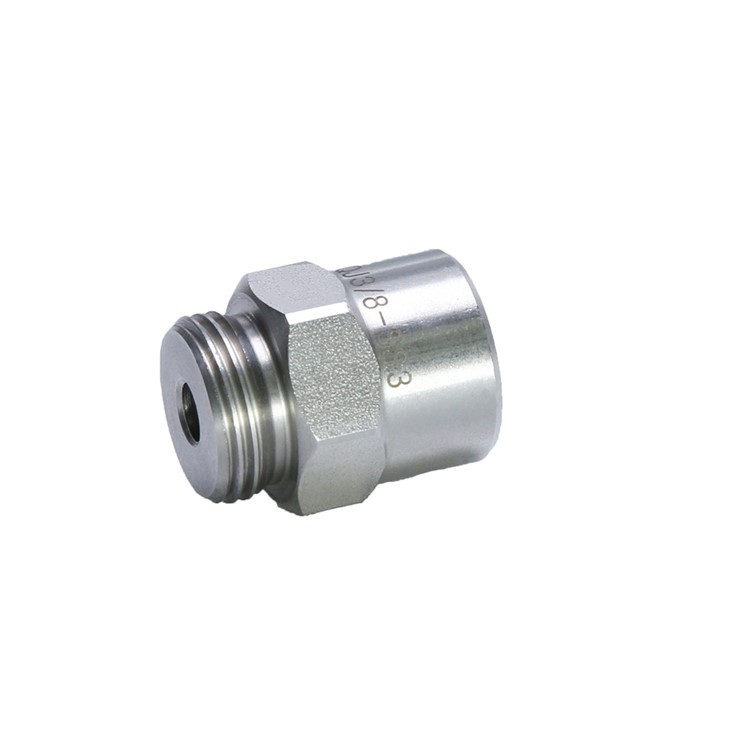

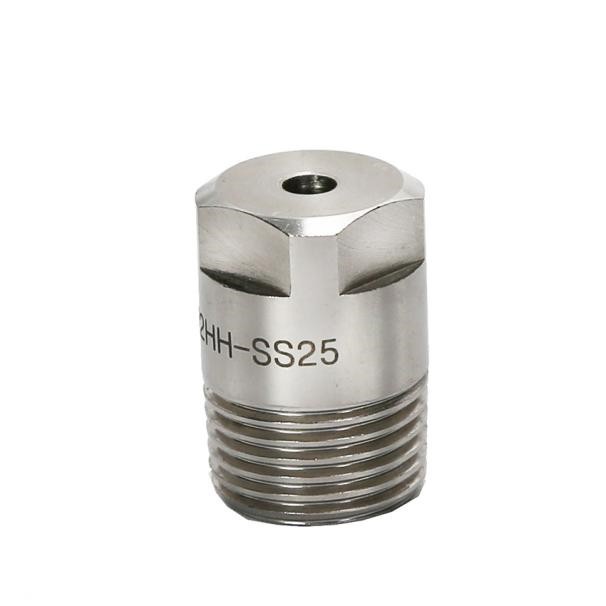

• Stainless Steel Full Cone Nozzles spray pattern with round impact area
• Unique vane design ensures uniform spray distribution
• Spray angles: 45⁰ to 65⁰
• Connections: 1/8” to 2” (male and female NPT and BSPT)
• Operating pressure range: up to 400 psi (25 bar)
|
Stainless Steel Full Cone Nozzles |
Full Cone Nozzles |
General Application
1) Cooling
2) Dust suppression
3) Fire Protection
4) Chemical Injection
5) Washing or cleaning
Dust Control
Roll Cooling
Description
|
Model |
BB; HH |
|
Inlet connection |
1/8’’;1/4’’;3/8”;1/2”;3/4”;1”;1-1/4”;1-1/2”; 2” |
|
Spray pattern |
Full cone |
|
Working pressure |
0.3-35 bar (500 psi) |
|
Working temperature |
-40℃-270℃ |
|
Spray angle |
100°/94°/93°/92°/91°/90°/85°/84°/81°/80°/75°/76°/74°70°/68°/67°/65°/58°/50° |
|
Application |
Washing and rinsing; Quenching and cooling; Control dust; Defoaming |
XINHOU is located in shanghai and is specialized in manufacturing Stainless Steel Full Cone Nozzles. With an experienced and professional team, we have exported our Stainless Steel Full Cone Nozzles to many countries and regions all over the world. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Parameter
|
Thread Size |
Flow Code |
Orifice Dia. (mm) |
Max free Passage Orifice Dia(mm) |
Flow rate ( L/min) |
– |
|||||||||
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
||||||||||||||
|
0.5 bar |
0.7 bar |
1.5 bar |
2 bar |
3 bar |
4 bar |
5 bar |
6 bar |
7 bar |
10 bar |
1.5 bar |
||||
|
1/8” |
1 |
0.79 |
0.64 |
– |
0.38 |
0.54 |
0.62 |
0.74 |
0.85 |
0.94 |
1 |
1.1 |
1.3 |
58° |
|
1.5 |
1.2 |
0.64 |
0.49 |
0.57 |
0.81 |
0.93 |
1.1 |
1.3 |
1.4 |
1.5 |
1.7 |
1.9 |
65° |
|
|
2 |
1.2 |
1 |
0.65 |
0.76 |
1.1 |
1.2 |
1.5 |
1.7 |
1.9 |
2 |
2.2 |
2.6 |
50° |
|
|
3 |
1.5 |
1 |
0.98 |
1.1 |
1.6 |
1.9 |
2.2 |
2.5 |
2.8 |
3.1 |
3.1 |
3.9 |
65° |
|
|
3.5 |
1.6 |
1.3 |
1.1 |
1.3 |
1.9 |
2.2 |
2.6 |
3 |
3.3 |
3.6 |
3.9 |
4.5 |
50° |
|
|
3.9 |
2 |
1 |
1.3 |
1.5 |
2.1 |
2.4 |
2.9 |
3.3 |
3.7 |
4 |
4.3 |
5.1 |
84° |
|
|
5 |
2 |
1.3 |
1.6 |
1.9 |
2.7 |
3.1 |
3.7 |
4.2 |
4.7 |
5.1 |
5.5 |
6.5 |
65° |
|
|
6.1 |
2.3 |
1.3 |
2 |
2.3 |
3.3 |
3.8 |
4.5 |
5.2 |
5.7 |
6.2 |
6.7 |
7.9 |
74° |
|
|
1/4” |
6.5 |
2.38 |
1.6 |
2.1 |
2.5 |
3.5 |
4 |
4.8 |
5.5 |
6.1 |
6.7 |
7.1 |
8.4 |
50° |
|
10 |
3.18 |
1.6 |
3.3 |
3.8 |
5.4 |
6.2 |
7.4 |
8.5 |
9.4 |
10.2 |
11 |
13 |
67° |
|
|
12.5 |
3.2 |
1.6 |
4.1 |
4.8 |
6.8 |
7.7 |
9.3 |
10.6 |
11.8 |
12.8 |
13.7 |
16.2 |
74° |
|
|
9.5 |
2.6 |
2.4 |
3.1 |
3.6 |
5.1 |
5.9 |
7.1 |
8.1 |
8.9 |
9.7 |
10.4 |
12.3 |
50° |
|
|
15 |
3.6 |
2.4 |
4.9 |
5.7 |
8.1 |
9.3 |
11.2 |
12.7 |
14.1 |
15.4 |
16.5 |
19.4 |
67° |
|
|
3/8” |
20 |
4 |
2.8 |
6.5 |
7.6 |
10.8 |
12.4 |
14.9 |
17 |
18.8 |
20 |
22 |
26 |
80° |
|
22 |
4.5 |
2.8 |
7.2 |
8.4 |
11.9 |
13.6 |
16.4 |
18.7 |
21 |
23 |
24 |
28 |
90° |
|
|
16 |
3.5 |
3.2 |
5.2 |
6.1 |
8.7 |
9.9 |
11.9 |
13.6 |
15.1 |
16.4 |
17.6 |
21 |
50° |
|
|
25 |
4.6 |
3.2 |
8.2 |
9.5 |
13.5 |
15.4 |
18.6 |
21 |
24 |
26 |
27 |
32 |
67° |
|
|
1/2” |
32 |
5.2 |
3.6 |
10.4 |
12.2 |
17.3 |
19.8 |
24 |
27 |
30 |
33 |
35 |
41 |
75° |
|
40 |
6.2 |
3.6 |
13.1 |
15.2 |
22 |
25 |
30 |
34 |
38 |
41 |
44 |
52 |
91° |
|
|
50 |
6.7 |
4 |
16.3 |
19.1 |
27 |
31 |
37 |
42 |
47 |
51 |
55 |
65 |
94° |
|
|
3/4” |
2.5 |
4.9 |
4.4 |
9.6 |
11.2 |
15.9 |
18.2 |
22 |
25 |
28 |
30 |
32 |
38 |
50° |
|
4 |
6.4 |
4.4 |
15.4 |
18 |
26 |
29 |
35 |
40 |
44 |
48 |
52 |
61 |
70° |
|
|
7 |
9.5 |
5.2 |
27 |
31 |
45 |
51 |
61 |
70 |
78 |
84 |
91 |
107 |
92° |
|
|
1” |
4.2 |
6 |
5.6 |
16.2 |
18.9 |
27 |
31 |
37 |
42 |
47 |
51 |
54 |
64 |
50° |
|
7 |
8.3 |
5.6 |
27 |
31 |
45 |
51 |
61 |
70 |
78 |
84 |
91 |
107 |
68° |
|
|
8 |
9.5 |
5.6 |
31 |
36 |
51 |
58 |
70 |
80 |
89 |
91 |
104 |
122 |
81° |
|
|
10 |
11.9 |
5.6 |
38 |
45 |
64 |
73 |
88 |
100 |
111 |
121 |
130 |
153 |
90° |
|
|
1 1/4” |
12 |
11.9 |
6.4 |
46 |
54 |
77 |
87 |
105 |
120 |
133 |
145 |
155 |
183 |
92° |
|
6 |
7.4 |
6.4 |
23 |
27 |
38 |
44 |
53 |
60 |
67 |
72 |
78 |
92 |
50° |
|
|
10 |
9.6 |
6.4 |
38 |
45 |
64 |
73 |
88 |
100 |
111 |
121 |
130 |
153 |
67° |
|
|
12 |
10.7 |
6.4 |
46 |
54 |
77 |
87 |
105 |
120 |
133 |
145 |
155 |
183 |
70° |
|
|
14 |
12.3 |
6.4 |
54 |
63 |
89 |
102 |
123 |
140 |
155 |
169 |
181 |
215 |
80° |
|
|
1 1/2” |
20 |
15.1 |
7.9 |
77 |
90 |
128 |
146 |
175 |
200 |
220 |
240 |
260 |
305 |
93° |
|
10 |
9.5 |
8.7 |
38 |
45 |
64 |
73 |
88 |
100 |
111 |
121 |
130 |
153 |
50° |
|
|
16 |
12.7 |
8.7 |
62 |
72 |
102 |
116 |
140 |
160 |
178 |
193 |
210 |
245 |
74° |
|
|
20 |
14.3 |
8.7 |
77 |
90 |
128 |
146 |
175 |
200 |
220 |
240 |
260 |
305 |
76° |
|
|
30 |
18.3 |
10.3 |
115 |
135 |
191 |
220 |
265 |
300 |
330 |
360 |
390 |
460 |
94° |
|
|
2” |
17 |
12.7 |
11.1 |
65 |
76 |
108 |
124 |
149 |
170 |
189 |
205 |
220 |
260 |
50° |
|
30 |
17.3 |
11.1 |
115 |
135 |
191 |
220 |
265 |
300 |
330 |
360 |
390 |
460 |
74° |
|
|
35 |
19.2 |
11.1 |
135 |
157 |
225 |
255 |
310 |
355 |
390 |
425 |
455 |
540 |
77° |
|
|
40 |
21 |
11.1 |
154 |
180 |
255 |
295 |
350 |
400 |
445 |
485 |
520 |
610 |
80° |
|
|
50 |
23.8 |
14.3 |
192 |
225 |
320 |
365 |
440 |
500 |
560 |
610 |
650 |
770 |
85° |
|
|
60 |
28.6 |
14.3 |
230 |
270 |
385 |
440 |
530 |
600 |
670 |
730 |
780 |
920 |
100° |
|
Ordering information
|
BB |
1/4’’ |
SS |
6.5 |
|
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
connector Size |
Material |
Flow code |
