Features
Spiral nozzle (SPJT) is a kind of full cone or hollow cone nozzle, spray angle range is 60°-170°.Liquid flow rate range is 5.5-410 L/min. This compact nozzle has design of smooth flow chanels which can miniminze the block of liquid to make liquid reach max flow in given size pipe. Spiral nozzle can be installed or updated on most piping system. The available nozzle is NPT or BSPT (male) threaded type. Usually 1/4’’-2’’ nozzle can separately use brass, 316 stainless steel casting, teflon. Other material can be used if they are applied to special fields.
What are the different types of spiral nozzles?

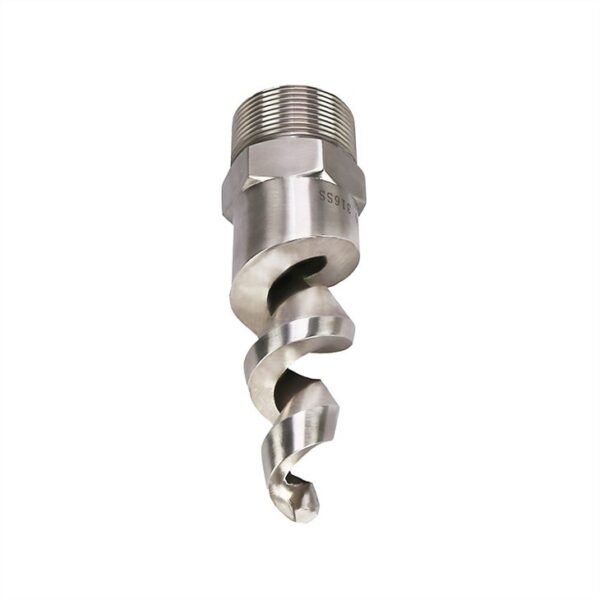

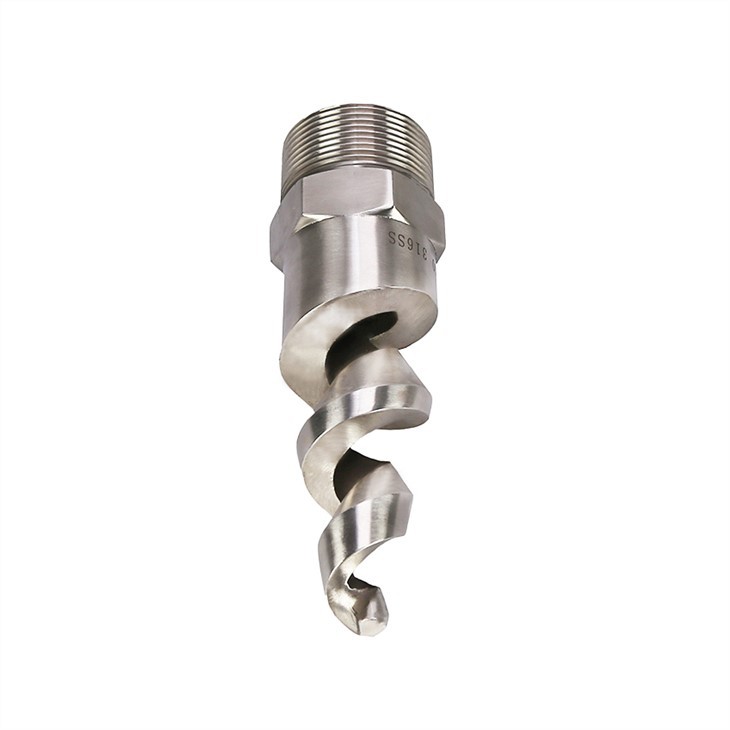

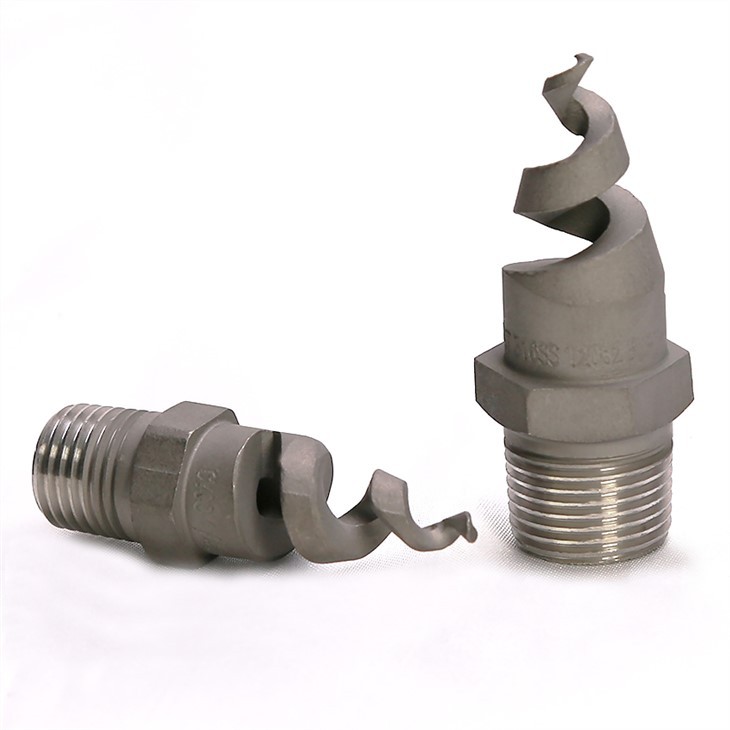

Stainless Steel Spiral Spray Nozzles
Excellent corrosive resistance
Fire and Heat Resistance
Hygiene-can be used in food industry
Bright and attractive appearance.
Long-Term Value

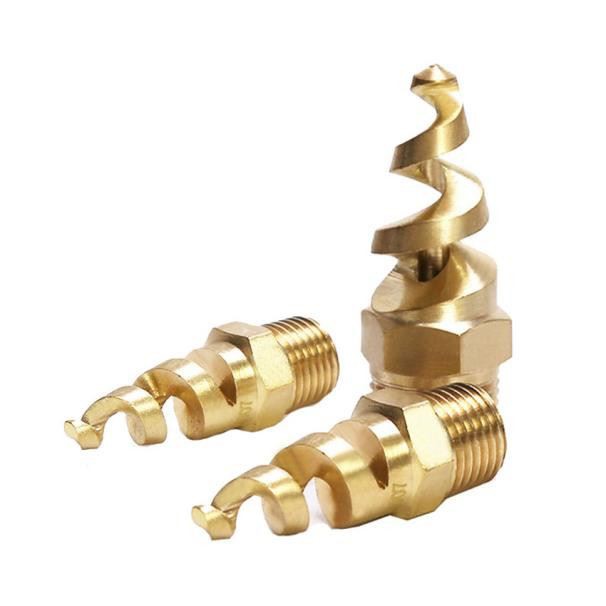

Helix Type Brass Spiral Spray Nozzles
Very Malleable
Durability
Tolerance of High Temperatures
Resistance to Corrosion

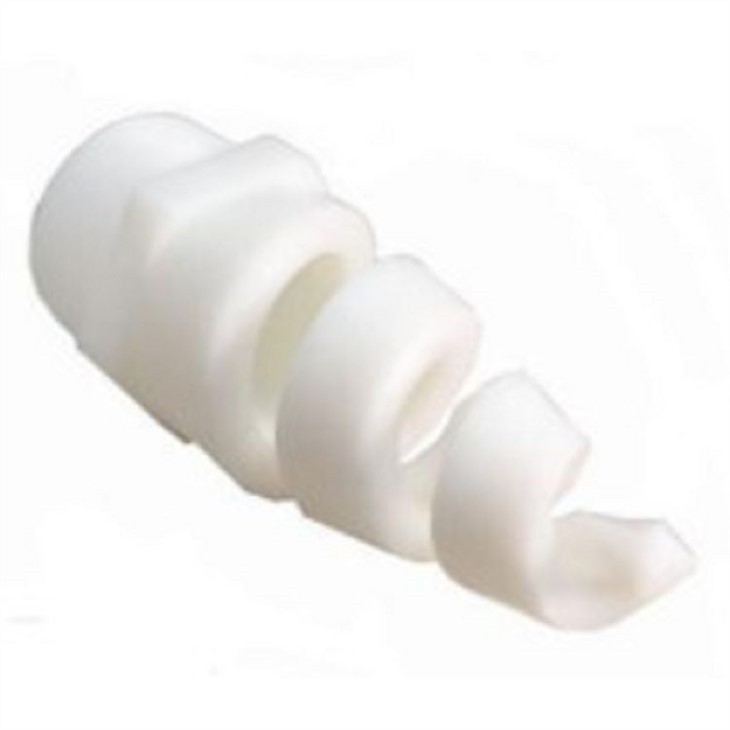

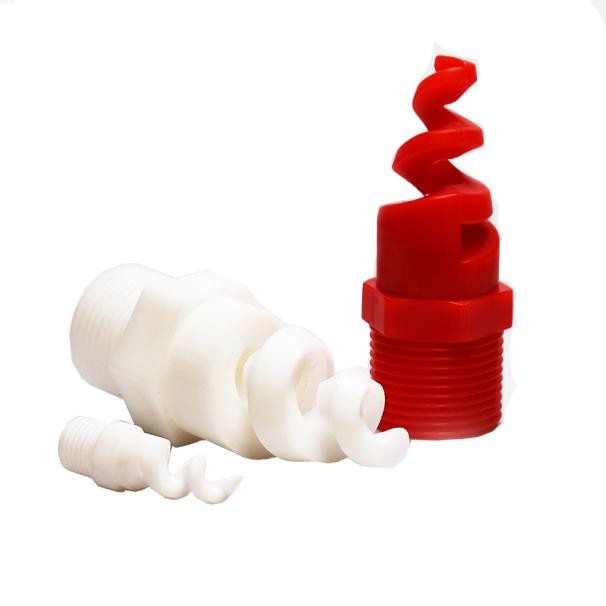

Pigtail PP PTFE Plastic Spiral Spray Nozzles
Good heat resistance up to 80-100℃
Resistance to chemical solvents, acid and alkali
Good stress crack resistance
High bending fatigue life

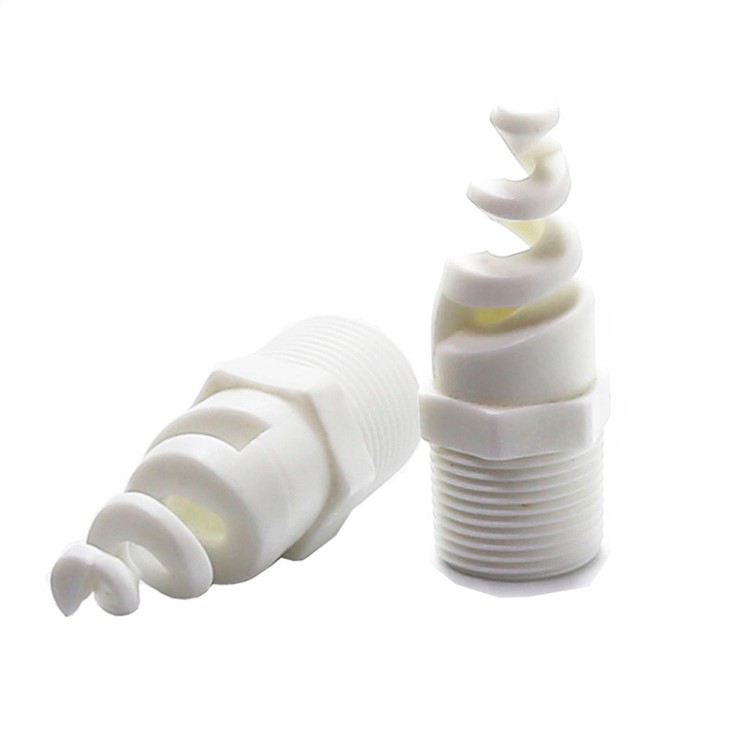

Corkscrew Ceramic Spiral Spray Nozzless
Strong extreme temperature resistance from -290 up to 290℃
Very low thermal conductivity
Extremely resistance to chemical solvents, acid and alkali
Description
|
Spray pattern |
Hollow cone ; Full cone |
|
Thread size |
1/4’’; 3/8’’ ; 1/2’’ ; 3/4’’ ; 1’’ ; 1-1/2’’ ; 2’’ ; 3’’ ; 4’’ |
|

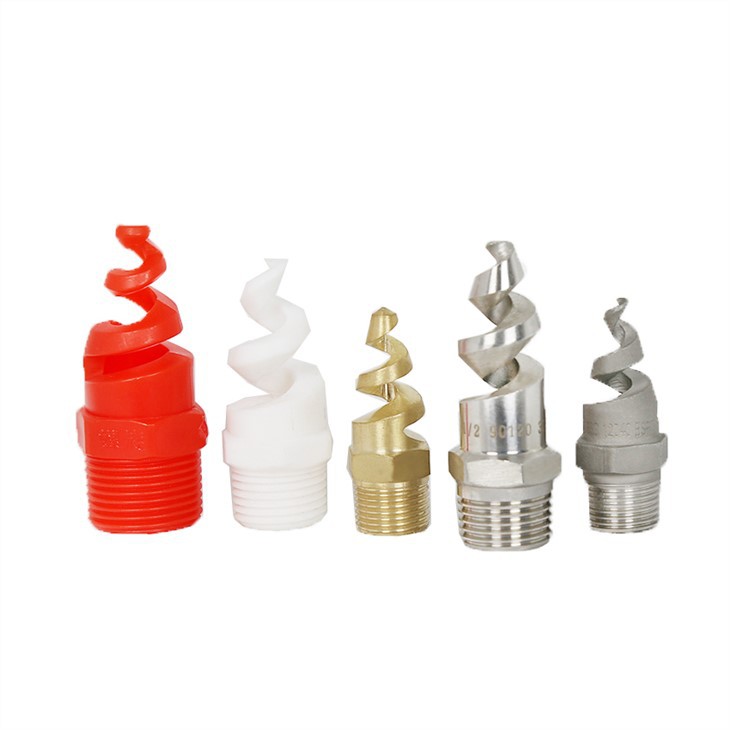

Material |
Stainless steel(303,304,316) ; Brass; Plastic(PP,PVDF,PTFE) ; Ceramic |
|
Spray angle |
60° ; 90° ; 120° ; 150° ; 170° |
Ordering information
|
SPJT |
1/4” |
– |
SS |
90 |
30 |
|
↓ |
↓ |
|
↓ |
↓ |
↓ |
|
Nozzle Type |
Thread Size |
|
Material |
Spray angle |
Flow code |
Parameter
|
Thread size |
Flow code |
Spray hole |
Free passage orifice |
Flow rate(L/min) |
||||
|
0.7bar |
1.5bar |
3bar |
7bar |
25bar |
||||
|
1/4” |
07 |
2.4 |
2.4 |
2.6 |
3.9 |
5.5 |
8.4 |
16 |
|
13 |
3.2 |
3.2 |
4.9 |
7.3 |
10.3 |
15.7 |
30 |
|
|
20 |
4.0 |
3.2 |
7.6 |
11.2 |
15.8 |
24 |
46 |
|
|
3/8” |
07 |
2.4 |
2.4 |
2.6 |
3.9 |
5.5 |
8.4 |
16 |
|
13 |
3.2 |
3.2 |
4.9 |
7.3 |
10.3 |
15.7 |
30 |
|
|
20 |
4.0 |
3.2 |
7.6 |
11.2 |
15.8 |
24 |
46 |
|
|
30 |
4.8 |
3.2 |
11.4 |
16.7 |
24 |
36 |
68 |
|
|
40 |
5.6 |
3.2 |
15.1 |
22 |
32 |
48 |
91 |
|
|
53 |
6.4 |
3.2 |
20 |
30 |
42 |
64 |
121 |
|
|
82 |
7.9 |
3.2 |
31 |
46 |
65 |
99 |
187 |
|
|
1/2” |
120 |
9.5 |
4.8 |
45 |
67 |
95 |
145 |
270 |
|
164 |
11.1 |
4.8 |
62 |
92 |
129 |
198 |
370 |
|
|
3/4” |
210 |
12.7 |
4.8 |
80 |
117 |
166 |
255 |
480 |
|
1” |
340 |
15.9 |
6.4 |
130 |
190 |
270 |
410 |
775 |
|
470 |
19.1 |
6.4 |
179 |
260 |
370 |
565 |
1070 |
|
|
1-1/2” |
640 |
22.2 |
7.9 |
245 |
355 |
505 |
770 |
1460 |
|
820 |
25.4 |
7.9 |
310 |
455 |
645 |
990 |
1870 |
|
|
960 |
28.6 |
7.9 |
365 |
535 |
755 |
1160 |
2190 |
|
|
2” |
1400 |
34.9 |
11.1 |
535 |
780 |
1105 |
1690 |
3190 |
|
1780 |
38.1 |
11.1 |
680 |
995 |
1405 |
2150 |
4060 |
|
|
3” |
2560 |
44.5 |
14.3 |
980 |
1430 |
2020 |
3090 |
5830 |
|
3360 |
50.8 |
14.3 |
1280 |
1880 |
2650 |
4050 |
7660 |
|
|
4” |
5250 |
63.5 |
15.9 |
2000 |
2930 |
4140 |
6330 |
11960 |
Application
1 Waste gas washing
2 Gas cooling and Exhaust gas scrubbing: Glazed tiles and coloured tiles, industrial gas cooling
3 Washing and rinsing process
4 Fire proof and extinguishment
5 Desulfurization
6 Chemical processing: Sterilization, Pharmaceutical production making process
7 Degreasing: Bottle and food making process clean, bear bottle clean, industrial equipments
8 Dust control: Building construction,control the coal ash and sand,crushed stones,slag ash,garbage Sweeper
9 Water cooling: Cooling of primary metals and other material,conveyor belt cooling，metal parts, machines
Why choose Xinhou’s spiral spray nozzles?
Shanghai Xinhou Spray Purification Equipment Co., Ltd. is located in Shanghai, China. Shanghai, as an international city, plays a very important role in the geographical location of international trade. If you are interested in visiting us, we will make you feel at home. In addition to the excellent location, Xinhou is most proud of the quality of our products and the company’s services. In the nozzle industry, our nozzle quality is the most durable and the best, our sales personnel, technical personnel, quotation department all will provide you with the most efficient, the most comprehensive, the most efficient service.
Spiral nozzles produce either a spiral full cone or hollow cone spray pattern, the spiral full cone pattern is developed from a series of concentric hollow cones which combine to give a full cone effect. The liquid is atomised into small droplets by a continuously descending spiral, therefore enters and exits with no internal restrictions through the nozzle. The result is a higher discharge velocity so low pumping pressures can be used to produce the required atomisation. We offer a wide range of flow rates and pressures with spray angles available from 60° to 170°. All spiral nozzles benefit from an unobstructed flow passage thus minimising clogging potential.
Our quality—We count quality as the life blood of company. We carry out every step strictly according to the ISO9001:2000 standard, such as purchasing the raw material , producing and inspecting products. We have priority in quality in this industry within China, and also Cost Effective Cost. The positive word of moutj from many of our customers is the best provement for us.
Perhaps you would like to learn more about spiral nozzles?
What is spiral nozzle?
Spiral Nozzle is a kind of solid cone-shape or the hollow cone-shape atomization nozzle. Widely applies in the haze desulphurization, dust removal, exhaust gas processing, wastewater disposal, the fireproofing, fire fighting, spraying cleaning and other fields. These compact nozzles have smooth flow paths, which can minimize the liquid blocking, so that the liquid in the pipeline of a given size reaches the maximum flow.
What is the most unique feature of the spiral nozzle?
The big advantage of spiral nozzle is that it is clog resistant, allowing a wider range of fluids to be sprayed. As the fluid is broken up into the spray pattern after exit from the orifice, these nozzles have a very large free passage meaning gritty contaminants will easily move through the nozzle without causing blockages.
What are the advantages of spiral nozzle?
Spiral Nozzles (also known as Pig Tail Nozzles) produce a wider spray coverage than most other varieties of full cone spray nozzle, even when used with low water pressures. The droplets produced are also generally smaller than other full cone nozzles, which means that the spray angle is able to be maintained regardless of the water pressure, while these smaller droplets are also able to reach otherwise inaccessible areas.
