Features
Features
• Siphon-Fed Round Spray Air Atomizing Nozzles produce Full cone pattern mist spray.
• The spray is finely atomized , mist or fog spray.
• Air pressure is usually 2 -3 bar. Liquid pressure may or may not be necessary.
• Adjustable flow rate allows different choices of capacities.
|

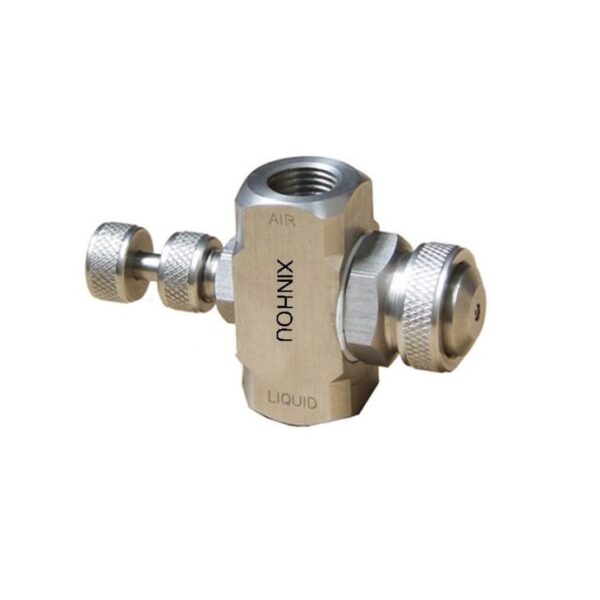

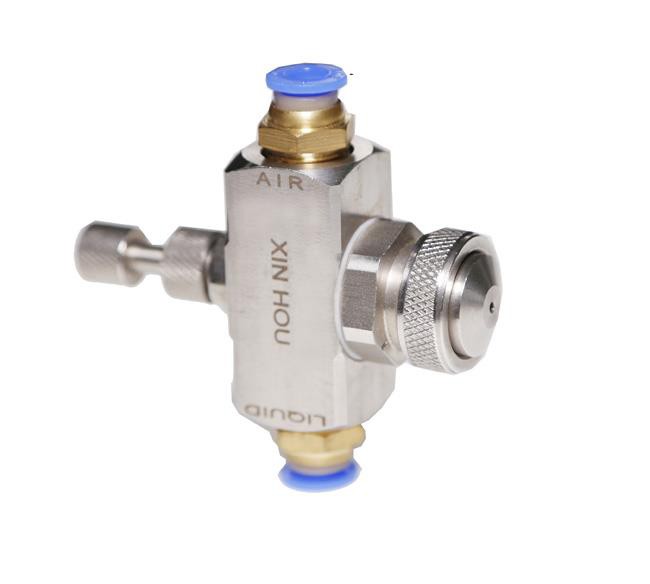

Siphon-Fed Round Spray Air Atomizing Nozzles |
Siphon-Fed Spray Air Atomizing Nozzles |
General Application
1) Coating, cooling, humidifying
2) Gas cooling
3) Lubricating, moistening
4) Misting, fogging
5) Dust suppression
Description
|
Model |
JN |
|
Type |
Adjustable |
|
Spray pattern |
Round |
|
Working way |
Siphon-Fed |
|
Mix |
Internal |
Parameter
|
Spray set-up No. |
Liquid cap & Air cap No. |
Atomizing air |
Liquid cpacity (L/h) |
Spray distance at 20cm syphon height |
|||||||||
|
Air pressure |
Air capacity |
Gravity head |
Syphon height |
||||||||||
|
45(cm) |
30(cm) |
15(cm) |
10（cm) |
20(cm) |
60(cm) |
90(cm) |
Air pressure (bar) |
Spray angle |
D (m) |
||||
|
SUJ1A |
Liquid cap 1650 |
0.7 |
11.3 |
1.5 |
1.3 |
1.1 |
0.87 |
0.68 |
– |
– |
0.7 |
18° |
1.8 |
|
1.5 |
17.0 |
1.8 |
1.7 |
1.5 |
1.3 |
1.2 |
0.62 |
– |
1.5 |
18° |
1.9 |
||
|
3.0 |
28 |
2.1 |
1.9 |
1.7 |
1.5 |
1.4 |
1.1 |
0.76 |
3.0 |
18° |
2.3 |
||
|
4.0 |
36 |
2.2 |
2.0 |
1.8 |
1.6 |
1.5 |
1.2 |
0.87 |
4.0 |
18° |
2.6 |
||
|
SUJ1A |
Liquid cap J2050 |
0.7 |
11.3 |
2.4 |
2.1 |
1.7 |
1.5 |
1.2 |
– |
– |
0.7 |
18° |
2.1 |
|
1.5 |
20 |
2.8 |
2.6 |
2.4 |
2.1 |
1.9 |
0.91 |
– |
1.5 |
18° |
2.3 |
||
|
3.0 |
32 |
3.4 |
3.1 |
2.9 |
2.8 |
2.6 |
1.7 |
1.1 |
3.0 |
18° |
2.6 |
||
|
4.0 |
41 |
3.7 |
3.4 |
3.3 |
3.1 |
2.9 |
2.1 |
1.5 |
4.0 |
19° |
3.0 |
||
|
SUJ2A |
Liquid cap J2050 |
0.7 |
23 |
2.5 |
2.3 |
2.0 |
1.6 |
1.4 |
– |
– |
0.7 |
18° |
2.4 |
|
1.5 |
36 |
2.9 |
2.8 |
2.5 |
2.2 |
2.0 |
0.89 |
– |
1.5 |
18° |
2.7 |
||
|
3.0 |
58 |
3.4 |
3.3 |
3.2 |
2.9 |
2.8 |
1.9 |
1.2 |
3.0 |
19° |
3.4 |
||
|
4.0 |
74 |
3.7 |
3.6 |
3.5 |
3.4 |
3.3 |
2.5 |
2.0 |
4.0 |
20° |
4.0 |
||
|
SUJ2 |
Liquid cap J2850 |
0.7 |
19.3 |
4.5 |
4.0 |
3.4 |
2.1 |
1.8 |
– |
– |
0.7 |
21° |
3.0 |
|
1.5 |
31 |
5.3 |
4.9 |
4.4 |
3.5 |
2.9 |
1.8 |
– |
1.5 |
21° |
3.4 |
||
|
3.0 |
50 |
6.0 |
5.6 |
5.0 |
4.4 |
4.0 |
2.4 |
1.2 |
3.0 |
21° |
4.0 |
||
|
4.0 |
65 |
5.7 |
5.4 |
5.0 |
4.2 |
3.9 |
2.8 |
1.9 |
4.0 |
22° |
4.6 |
||
|
SUJ4 |
Liquid cap J60100 |
1.5 |
58 |
22 |
19.9 |
16.3 |
12.3 |
10.5 |
2.8 |
– |
1.5 |
17° |
3.7 |
|
3.0 |
88 |
25 |
23 |
19.5 |
16.7 |
14.2 |
6.4 |
2.8 |
3.0 |
18° |
4.3 |
||
|
4.5 |
111 |
26 |
24 |
21 |
18.4 |
15.7 |
7.9 |
4.5 |
4.0 |
18° |
4.9 |
||
|
5.6 |
147 |
26 |
24 |
22 |
19.7 |
17.0 |
9.8 |
6.1 |
5.6 |
19° |
5.5 |
||
|
SUJ4B |
Liquid cap J100150 |
2.0 |
144 |
– |
– |
– |
27 |
22 |
– |
– |
2.0 |
20° |
6.7 |
|
3.0 |
190 |
– |
– |
– |
30 |
26 |
– |
– |
3.0 |
20° |
7 |
||
|
4.0 |
240 |
– |
43 |
40 |
31 |
28 |
11.0 |
– |
4.0 |
21° |
7.6 |
||
|
5.6 |
315 |
44 |
42 |
39 |
31 |
28 |
16.7 |
8.3 |
5.6 |
22° |
8.2 |
||
Ordering information
|
JN |
1/4’’ |
SS |
SUJ1A |
SS |
|
↓ |
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
Thread Size |
Air cap material code |
Spraying devoice No. |
Liquid cap material code |
Application pictures
Dust control
