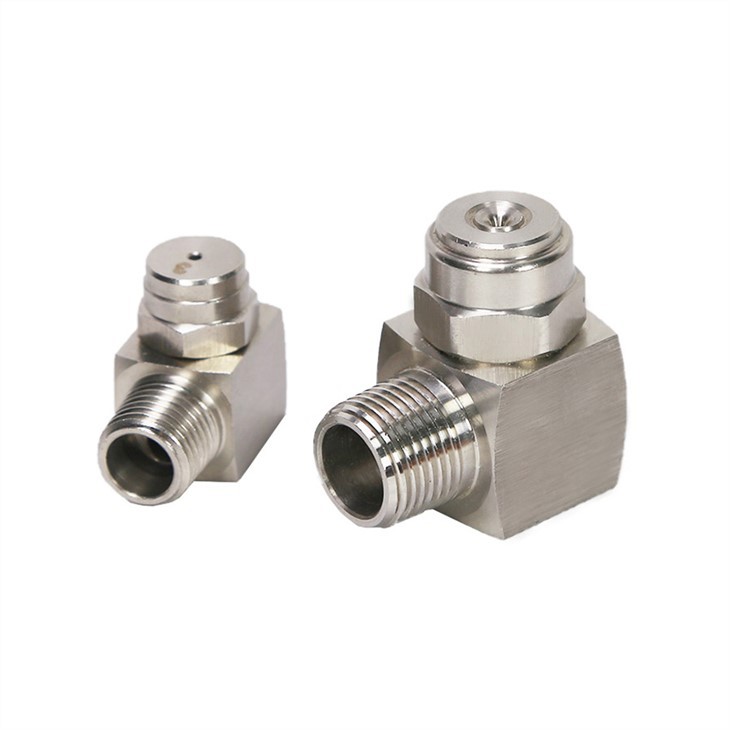

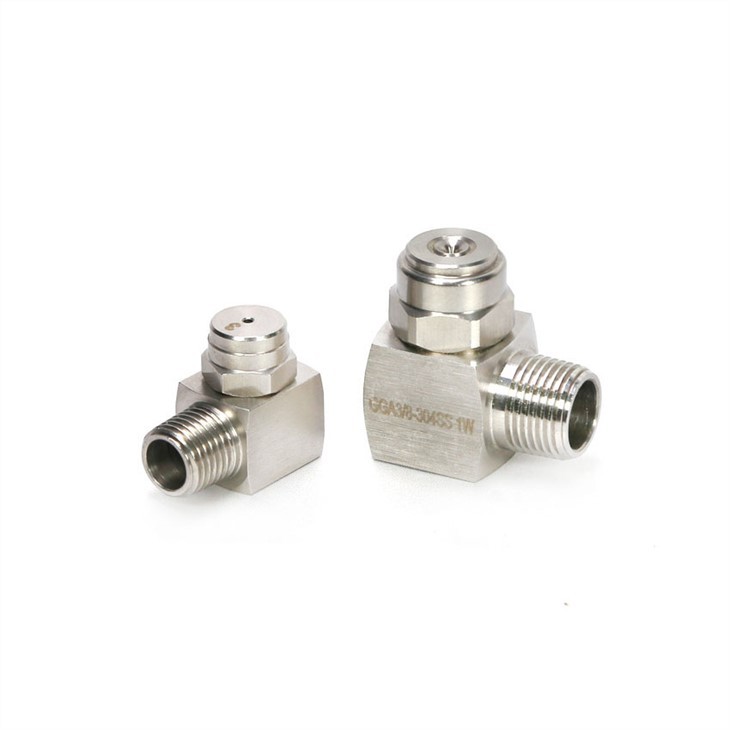

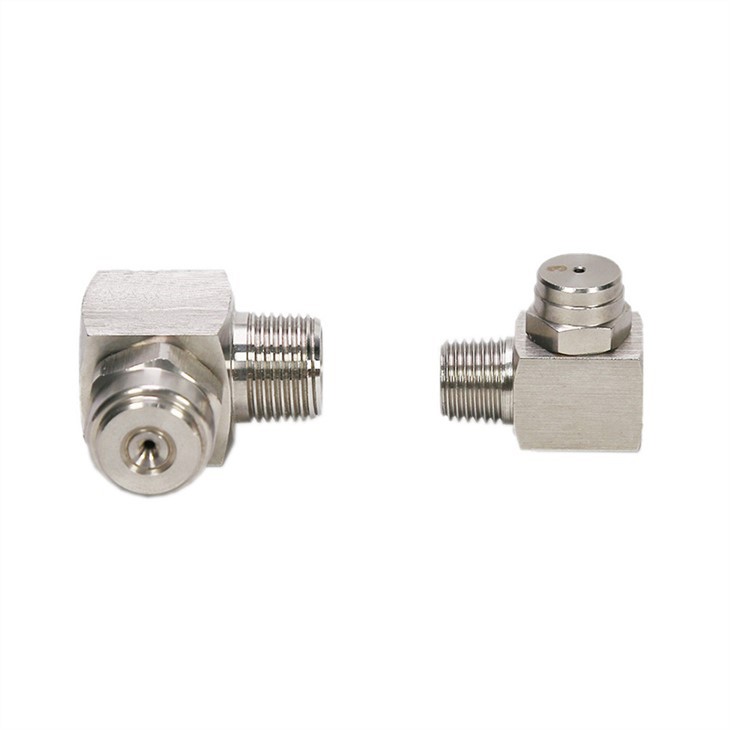

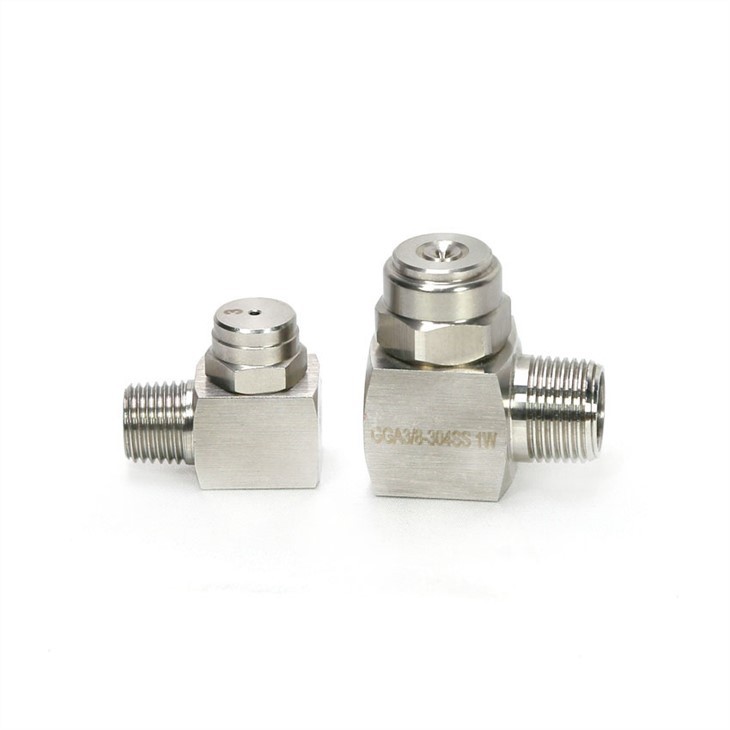

Features
• Right Angle Tangential-flow Full Cone Nozzles are with corner type spray design
• Spray shape is round full cone . The effect is same as full cone nozzles
• The installation is suitable for fit on pipe with side holes
• Spray angles: 40⁰ to 120⁰
• Connections: 1/8” to 2” (male and female NPT and BSPT)
• Operating pressure range: up to 400 psi (25 bar)
General Application
1) Cooling
2) Dust suppression
3) Fire Protection
4) Chemical Injection
5) Washing or cleaning
Description
|
Model |
GGA；GA |
|
Spray pattern |
Full cone |
|
Inner connection |
1/8’’; 1/4’’; 3/8’’; 1/2’’ |
|
Spray angle |
112°/110°/108°/106°/104°/103°/102°/91°/90°/84°/80°/75°/67°/65°/58°/55°/50° |
|
Application |
Cleaning; Cooling; Coating; Spraying; Dusting |
Parameter
● Standard Angle
|
Thread Size |
Flow Code |
Orifice Dia. (mm) |
Max free Passage Orifice Dia(mm) |
Flow Rate ( L/min) |
spray angle |
|||||||||
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
||||||||||||||
|
0.5 bar |
0.7 bar |
1 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
1.5bar |
||||
|
1/8” |
1 |
0.79 |
0.64 |
|
0.38 |
0.54 |
0.62 |
0.74 |
0.85 |
0.94 |
1 |
1.1 |
1.3 |
58° |
|
1.5 |
1.2 |
0.64 |
0.49 |
0.57 |
0.81 |
0.93 |
1.1 |
1.3 |
1.4 |
1.5 |
1.7 |
1.9 |
65° |
|
|
2 |
1.2 |
1 |
0.65 |
0.76 |
1.1 |
1.2 |
1.5 |
1.7 |
1.9 |
2 |
2.2 |
2.6 |
50° |
|
|
3 |
1.5 |
1 |
0.98 |
1.1 |
1.6 |
1.9 |
2.2 |
2.5 |
2.8 |
3.1 |
3.3 |
3.9 |
65° |
|
|
3.5 |
1.6 |
1.3 |
1.1 |
1.3 |
1.9 |
2.2 |
2.6 |
3 |
3.3 |
3.6 |
3.9 |
4.5 |
50° |
|
|
3.9 |
2 |
1 |
1.3 |
1.5 |
2.1 |
2.4 |
2.9 |
3.3 |
3.7 |
4 |
4.3 |
5.1 |
84° |
|
|
5 |
2 |
1.3 |
1.6 |
1.9 |
2.7 |
3.1 |
3.7 |
4.2 |
4.7 |
5.1 |
5.5 |
6.5 |
65° |
|
|
1/4” |
6.5 |
2.38 |
1.6 |
2.1 |
2.5 |
3.5 |
4 |
4.8 |
5.5 |
6.1 |
6.7 |
7.1 |
8.4 |
50° |
|
10 |
3.18 |
1.6 |
3.3 |
3.8 |
5.4 |
6.2 |
7.4 |
8.5 |
9.4 |
10.2 |
11 |
13 |
67° |
|
|
3/8” |
9.5 |
2.6 |
2.4 |
3.1 |
3.6 |
5.1 |
5.9 |
7.1 |
8.1 |
8.9 |
9.7 |
10.4 |
12.3 |
50° |
|
15 |
3.6 |
2.4 |
4.9 |
5.7 |
8.1 |
9.3 |
11.2 |
12.7 |
14.1 |
15.4 |
16.5 |
19.4 |
67° |
|
|
20 |
4 |
2.8 |
6.5 |
7.6 |
10.8 |
12.4 |
14.9 |
17 |
18.8 |
20 |
22 |
26 |
80° |
|
|
22 |
4.5 |
2.8 |
7.2 |
8.4 |
11.9 |
13.6 |
16.4 |
18.7 |
21 |
23 |
24 |
28 |
90° |
|
|
1/2” |
16 |
3.5 |
3.2 |
5.2 |
6.1 |
8.7 |
9.9 |
11.9 |
13.6 |
15.1 |
16.4 |
17.6 |
21 |
55° |
|
25 |
4.6 |
3.2 |
8.2 |
9.5 |
13.5 |
15.4 |
18.6 |
21 |
24 |
26 |
27 |
32 |
67° |
|
|
32 |
5.2 |
3.6 |
10.4 |
12.2 |
17.3 |
19.8 |
24 |
27 |
30 |
33 |
35 |
41 |
75° |
|
|
40 |
6.2 |
3.6 |
13.1 |
15.2 |
22 |
25 |
30 |
34 |
38 |
41 |
44 |
52 |
91° |
|
● Wide Angle
|
Thread Size |
Flow Code |
Orifice Dia. (mm) |
Max free Passage Orifice Dia(mm) |
Flow Rate ( L/min) |
Spray angle |
|||||||||
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
||||||||||||||
|
0.3 bar |
0.5 bar |
0.7 bar |
1 bar |
2bar |
3bar |
4bar |
5bar |
6bar |
0.7bar |
6bar |
||||
|
1/8” |
4.3W |
2 |
1 |
– |
– |
1.6 |
1.9 |
2.6 |
3.1 |
3.5 |
3.9 |
4.2 |
120° |
102° |
|
5.6W |
2.4 |
1 |
– |
1.8 |
2.1 |
2.5 |
3.4 |
4 |
4.6 |
5.1 |
5.5 |
120° |
102° |
|
|
8W |
2.4 |
1.3 |
– |
2.6 |
3 |
3.6 |
3.6 |
4.8 |
5.8 |
6.6 |
7.2 |
120° |
103° |
|
|
1/4” |
10W |
2.8 |
1.3 |
2.6 |
3.3 |
3.8 |
4.5 |
6 |
7.2 |
8.2 |
9.1 |
9.8 |
120° |
103° |
|
12W |
3.2 |
1.3 |
3.1 |
3.9 |
4.6 |
5.3 |
7.3 |
8.7 |
9.8 |
10.9 |
11.8 |
120° |
103° |
|
|
14W |
3.6 |
1.6 |
3.7 |
4.6 |
5.3 |
6.2 |
8.5 |
10.1 |
11.5 |
12.7 |
13.7 |
120° |
103° |
|
|
3/8” |
20W |
4.4 |
2.4 |
5.2 |
6.6 |
7.6 |
8.9 |
12.1 |
14.5 |
16.5 |
18.1 |
19.6 |
120° |
104° |
|
24W |
4.8 |
2.4 |
6.3 |
7.9 |
9.1 |
10.7 |
14.5 |
17.3 |
19.7 |
22 |
24 |
120° |
104° |
|
|
27W |
5.2 |
2.8 |
7.1 |
8.9 |
10.3 |
12 |
16.3 |
19.5 |
22 |
24 |
26 |
120° |
106° |
|
|
1/2” |
35W |
6 |
3.2 |
9.2 |
11.5 |
13.3 |
15.6 |
21 |
25 |
29 |
32 |
34 |
120° |
108° |
|
40W |
6.4 |
3.2 |
10.5 |
13.1 |
15.2 |
17.8 |
24 |
29 |
33 |
36 |
39 |
120° |
108° |
|
|
45W |
6.4 |
3.6 |
11.8 |
14.8 |
17.1 |
20 |
28 |
33 |
37 |
41 |
44 |
120° |
110° |
|
|
50W |
6.7 |
4 |
13.1 |
16.4 |
19.1 |
22 |
30 |
36 |
41 |
45 |
49 |
120° |
112° |
|
Ordering information
|
GG |
1/4’’ |
SS |
3.5 |
|
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
connector Size |
Material |
Flow code |
Application pictures
Quenching
