Features
Features

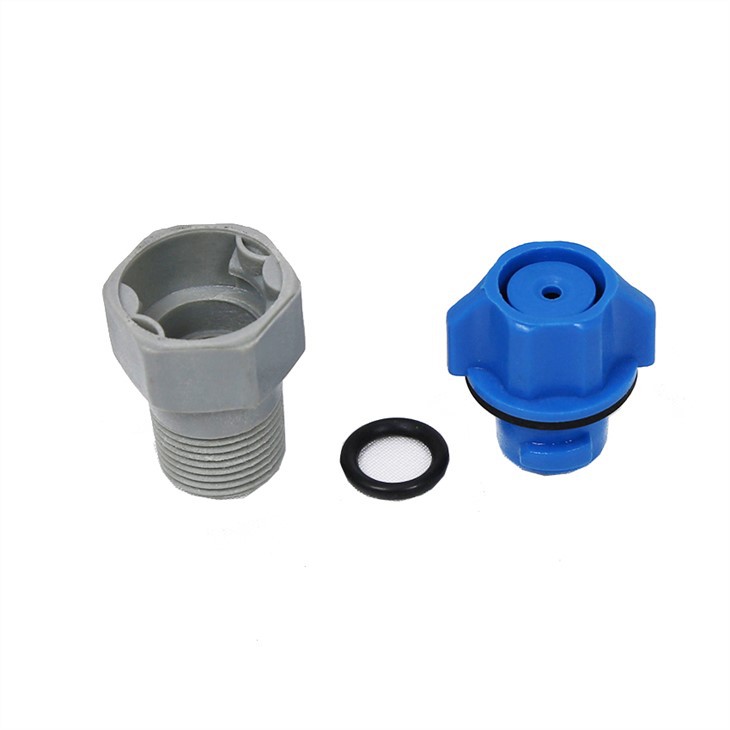

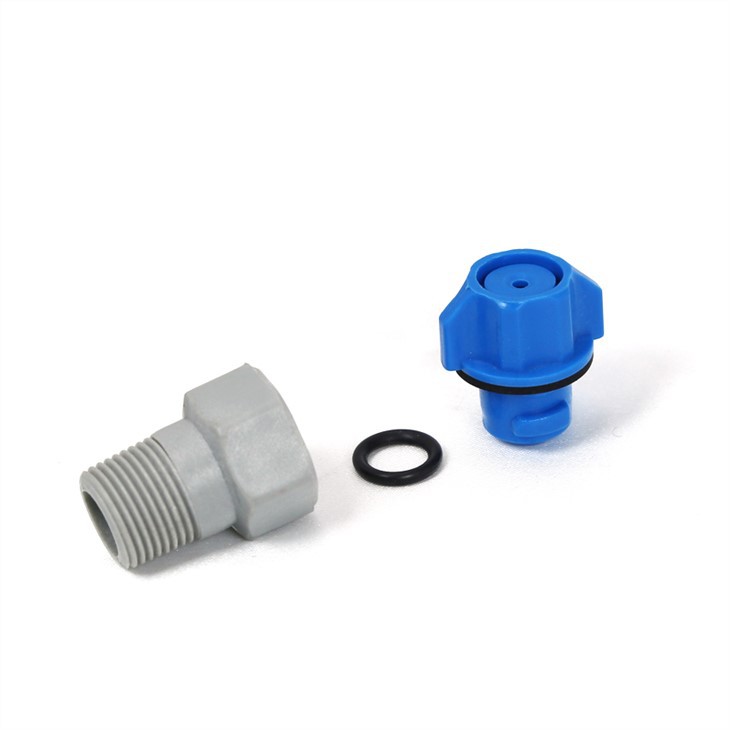

• With quick dismantling spray tip and quick-change nozzles, the body stays on the header – only the spray tips are replaced which allows you lower costs by changing out just the tips, and slash maintenance time.
• Most Quick dismantling nozzles allow tips to be removed and installed by hand and offer automatic alignment.
• Thread sizes inclues 1/4″, 3/8″
• Spray angle from 45 to 65 degrees.
• Chemical- and corrosion-resistant material PP or FRPP ( Fiber reinforced Polypropylene) withstands high temperatures at about 85°C.
• Use with Nitrile or Fluorine rubber as O-ring seal material which is Chemical- and corrosion-resistant.
|

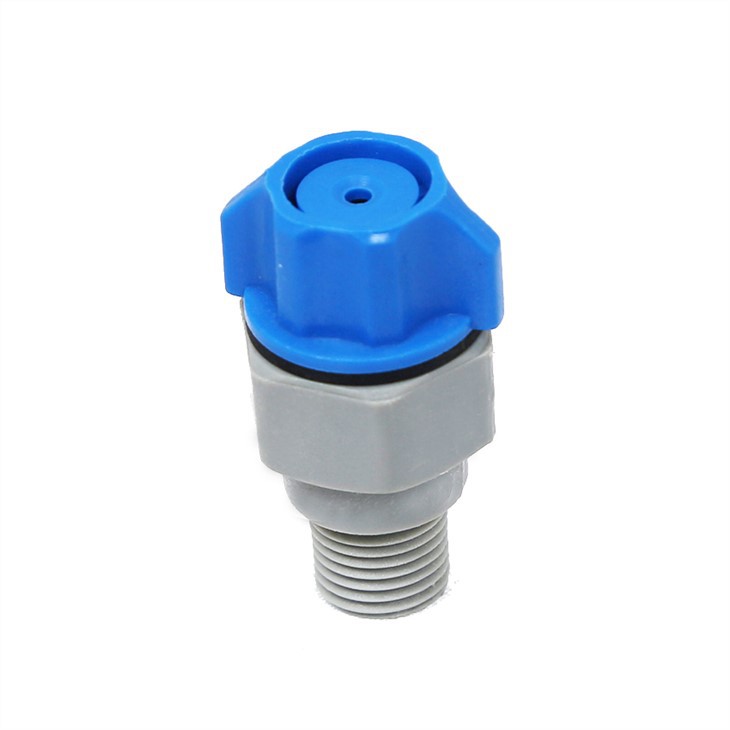

PCB Washing Full Cone Quick Dismantling Nozzle |

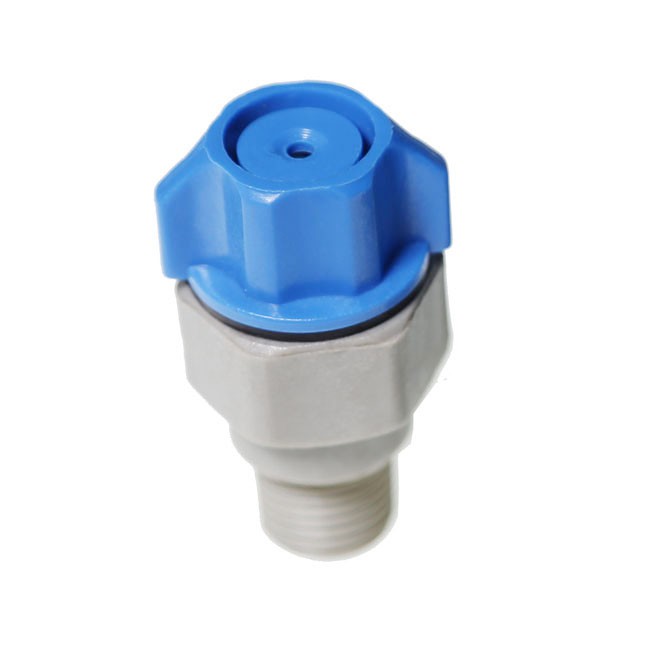

Washing Full Cone Quick Dismantling Nozzle |
General Application
1) Industrial plating
2) Etching machine
3) Development
4) PCB washing or cleaning
5) Cooling
6) Metal finishing
7) Coating
Parameter
|
|
Full Cone |
||||||||||||
|
Style No. |
Flow rate (l/m) |
Spray angle |
|||||||||||
|
0.7bar |
1.5bar |
2bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
0.5bar |
1.5bar |
6bar |
||
|
QB2 |
0.76 |
1.0 |
1.2 |
1.5 |
1.7 |
1.9 |
2.0 |
2.2 |
2.6 |
43° |
50° |
46° |
|
|
QB3 |
1.1 |
1.6 |
1.9 |
2.2 |
2.5 |
2.8 |
3.1 |
3.3 |
3.9 |
52° |
65° |
59° |
|
|
QB3.5 |
1.3 |
1.9 |
2.2 |
2.6 |
3.0 |
3.3 |
3.6 |
3.9 |
4.5 |
43° |
50° |
46° |
|
|
QB5 |
1.9 |
2.7 |
3.1 |
3.7 |
4.2 |
4.7 |
5.1 |
5.5 |
6.5 |
52° |
65° |
59° |
|
|
QB6.5 |
2.5 |
3.5 |
4.0 |
4.8 |
5.5 |
6.1 |
6.7 |
7.1 |
8.4 |
45° |
50° |
46° |
|
|
QB10 |
3.8 |
5.4 |
6.2 |
7.4 |
8.5 |
9.4 |
10.2 |
11.0 |
13.0 |
58° |
67° |
61° |
|
|
Nozzle body No. |
Thread size |
||
|
QJJ 1/8” |
1/8” |
||
|
QJJ 1/4” |
1/4” |
||
|
QJJ 3/8” |
3/8” |
||
|
body |
QJJB 1/4” |
1/4” (Hollow cone) |
|
Ordering information
|
QJJ |
1/4” |
QB5 |
PP |
|
↓ |
↓ |
↓ |
↓ |
|
Body No. |
Thread size |
Spray tip no. |
Material |
