Features

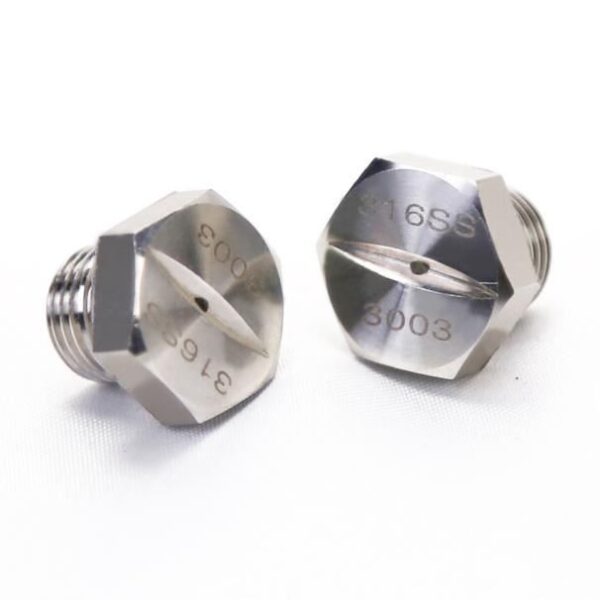

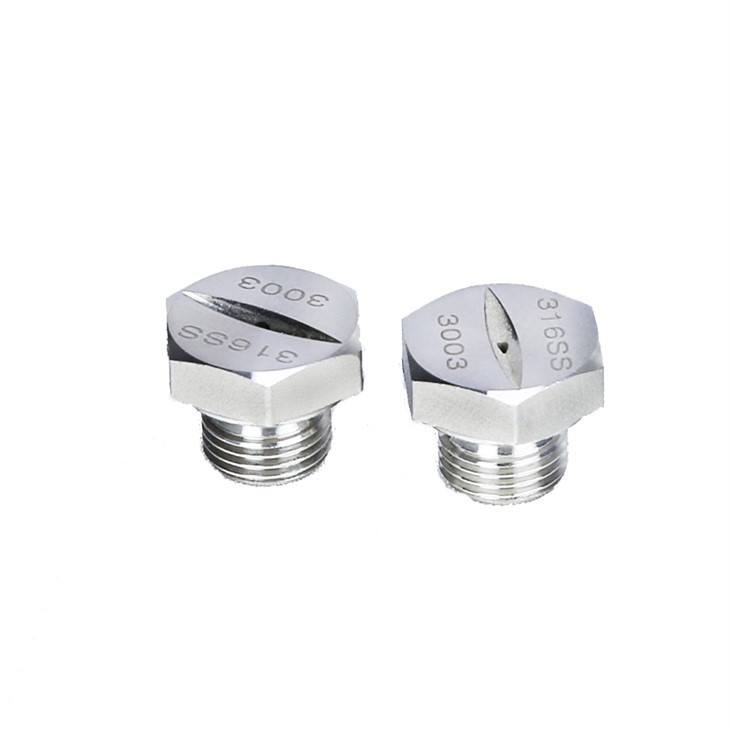

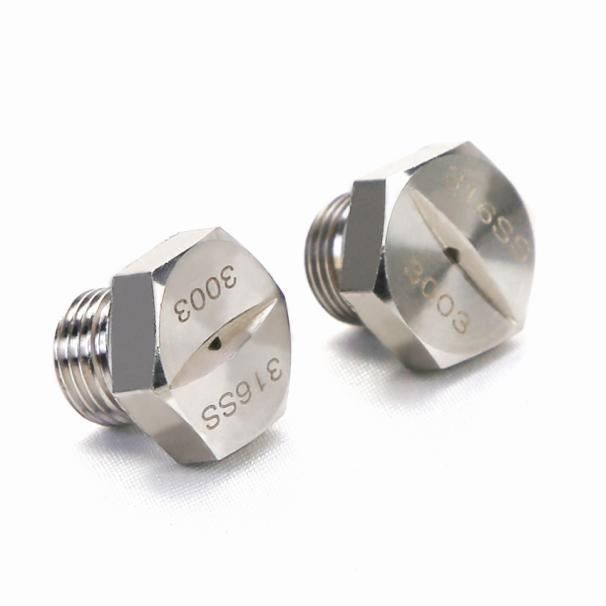

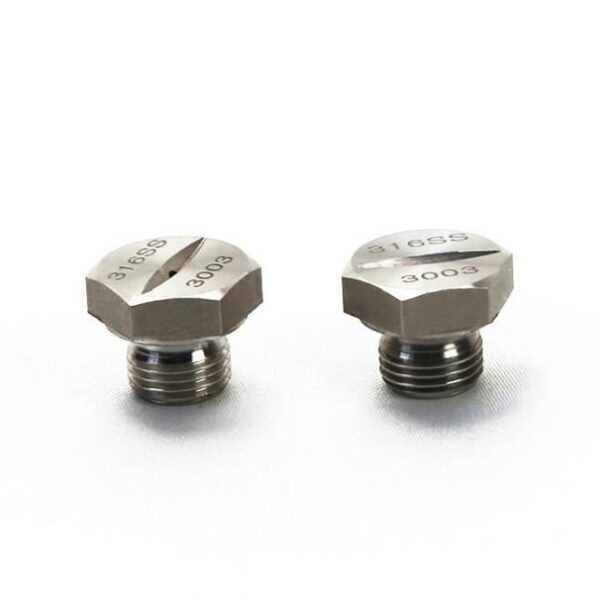

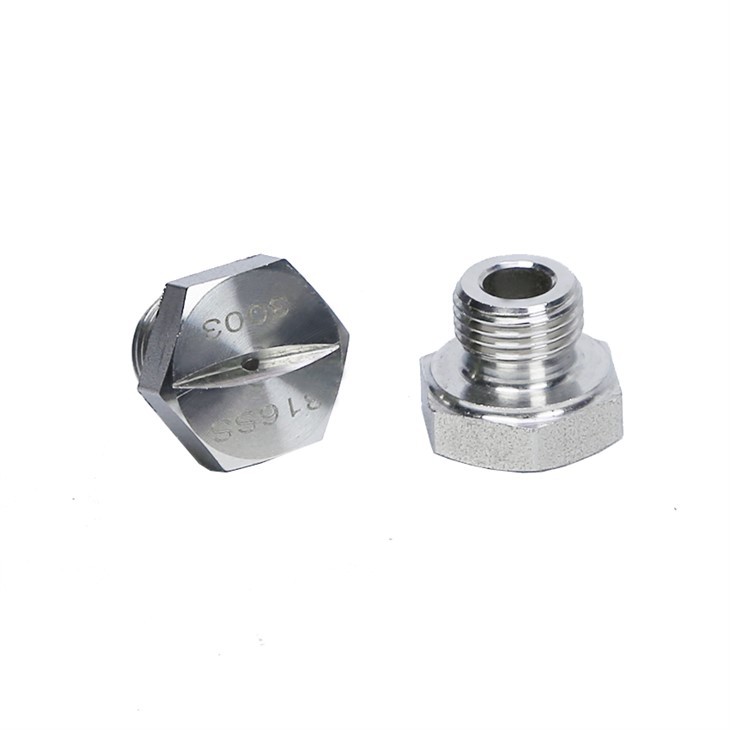

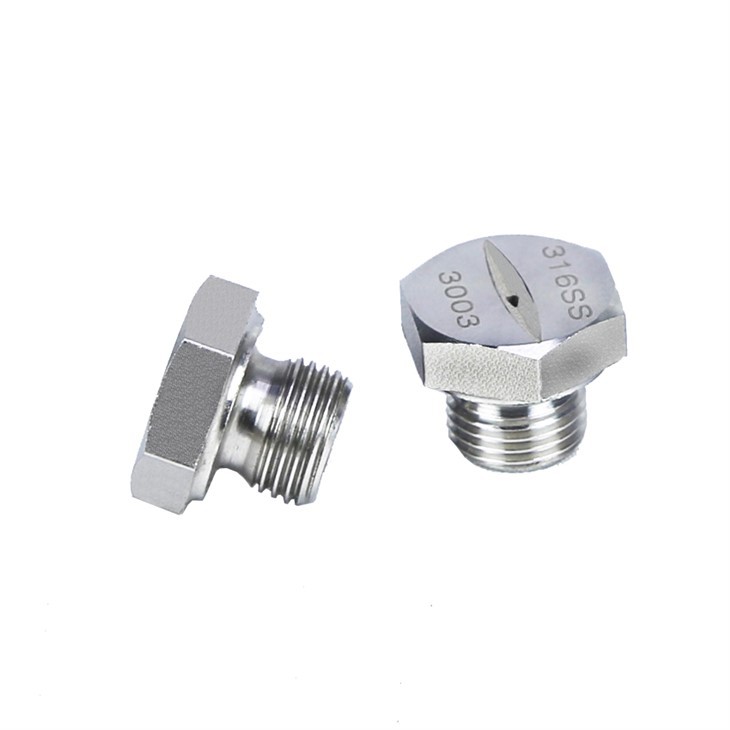

NFS Stubby Small Flat Fan Spray Nozzles have compact design, suitable for narrow installation conditions and it has stable spray angle.
|
NFS Stubby Small Flat Fan Spray Nozzles |
Stubby Small Flat Fan Spray Nozzles |
Parameter
|
Spray Angle |
Flow Code |
Orifice Dia |
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
|
||||||||||
|
0.3 bar |
1 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
20bar |
35bar |
3 bar |
|||
|
0° |
0.3 bar |
1 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
20bar |
35bar |
Spray Angle (3bar) |
||
|
0017 |
0.28 |
|
|
0.05 |
0.06 |
0.07 |
0.08 |
0.09 |
0.1 |
0.12 |
0.17 |
0.23 |
|
|
|
0033 |
0.38 |
|
|
0.11 |
0.13 |
0.15 |
0.17 |
0.18 |
0.2 |
0.24 |
0.34 |
0.44 |
0° |
|
|
0050 |
0.46 |
|
0.11 |
0.16 |
0.2 |
0.23 |
0.25 |
0.28 |
0.3 |
0.36 |
0.51 |
0.67 |
||
|
0067 |
0.53 |
|
0.15 |
0.22 |
0.26 |
0.31 |
0.34 |
0.37 |
0.4 |
0.48 |
0.68 |
0.9 |
||
|
01 |
0.66 |
0.12 |
0.23 |
0.32 |
0.39 |
0.46 |
0.51 |
0.56 |
0.6 |
0.72 |
1.0 |
1.3 |
||
|
015 |
0.79 |
0.19 |
0.34 |
0.48 |
0.59 |
0.68 |
0.76 |
0.84 |
0.90 |
1.1 |
1.5 |
2.0 |
||
|
02 |
0.91 |
0.25 |
0.46 |
0.64 |
0.79 |
0.91 |
1.0 |
1.1 |
1.2 |
1.4 |
2 |
2.7 |
||
|
03 |
1.1 |
0.37 |
0.68 |
0.97 |
1.2 |
1.4 |
1.5 |
1.7 |
1.8 |
2.2 |
3.1 |
4.0 |
||
|
04 |
1.3 |
0.5 |
0.91 |
1.3 |
1.6 |
1.8 |
2.0 |
2.2 |
2.4 |
2.9 |
4.1 |
5.4 |
||
|
05 |
1.4 |
0.62 |
1.1 |
1.6 |
2.0 |
2.3 |
2.5 |
2.8 |
3 |
3.6 |
5.1 |
6.7 |
||
|
06 |
1.6 |
0.75 |
1.4 |
1.9 |
2.4 |
2.7 |
3.1 |
3.3 |
3.6 |
4.3 |
6.1 |
8.1 |
||
|
08 |
1.8 |
1.0 |
1.8 |
2.6 |
3.2 |
3.6 |
4.1 |
4.5 |
4.8 |
5.8 |
8.2 |
10.8 |
||
|
10 |
2.0 |
1.2 |
2.3 |
3.2 |
3.9 |
4.6 |
5.1 |
5.6 |
6.0 |
7.2 |
10.2 |
13.5 |
||
|
15 |
2.4 |
1.9 |
3.4 |
4.8 |
5.9 |
6.8 |
7.6 |
8.4 |
9.0 |
10.8 |
15.3 |
20 |
||
|
20 |
2.8 |
2.5 |
4.6 |
6.5 |
7.9 |
9.1 |
10.2 |
11.2 |
12.1 |
14.4 |
20 |
27 |
||
|
30 |
3.6 |
3.7 |
6.8 |
9.7 |
11.8 |
13.7 |
15.3 |
16.7 |
18.1 |
22 |
31 |
40 |
||
|
40 |
4.0 |
5.0 |
9.1 |
12.9 |
15.8 |
18.2 |
20.0 |
22 |
24 |
29 |
41 |
54 |
||
|
50 |
4.4 |
6.2 |
11.4 |
16.1 |
19.7 |
23 |
25 |
28 |
30 |
36 |
51 |
68 |
||
|
60 |
4.8 |
7.5 |
13.7 |
19.3 |
24 |
27 |
31 |
33 |
36 |
43 |
61 |
81 |
||
|
70 |
5.2 |
8.7 |
16 |
23 |
28 |
32 |
36 |
39 |
42 |
50 |
70 |
94 |
||
|
100 |
6.4 |
12.5 |
23 |
32 |
39 |
46 |
51 |
56 |
60.0 |
72 |
102 |
135 |
||
|
150 |
7.5 |
18.7 |
34 |
48 |
59 |
68 |
76 |
84 |
90.0 |
108 |
153 |
205 |
||
|
200 |
8.7 |
25 |
46 |
64 |
79 |
91 |
102 |
112 |
121 |
144 |
205 |
270 |
||
Ordering information
|
NFS |
1/4’’ |
– |
316SS |
6510 |
|
↓ |
↓ |
|
↓ |
↓ |
|
Nozzle Type |
connector Size |
|
Material |
Flow code |
General Application
1) Cleaning
2) Rinsing
3) Coating
4) Washing
5) Pressure Washing
6) Surface Preparation
In the production of NFS small flat fan spray nozzles, Shanghai Xinhou spray nozzles have mature technology and perfect process, which is your best choice. Shanghai Xinhou spray nozzles company adhere to the 100% responsibility for customers, whether in production or before delivery, we will strictly control and supervise the whole process, to ensure that each of our customers can receive high quality spray nozzles .
If you are interested in this type of flat fan nozzles, please don’t hesitate to contact Xinhou spray nozzles, we will solve your problems as soon as possible.
Hot Tags: NFS small flat fan nozzles, China, manufacturers, suppliers, factory, price
