Features
Features
• Material: 304 or 316 SS or brass.
• Thread size: 9/16″ or 1/4″
•Working pressure 3~35bar.
• Precisely machined swirl cores structureto produce very fine mist droplets.
• Compact size, wide variety of flowrates.
•Widely used for oil burning, humidifying.fogcannon, snow maker, etc.
• This series of nozzles does not need air supply.
• The system is simple; the spray mist is fine, full atomization, energy saving.
• Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.
|

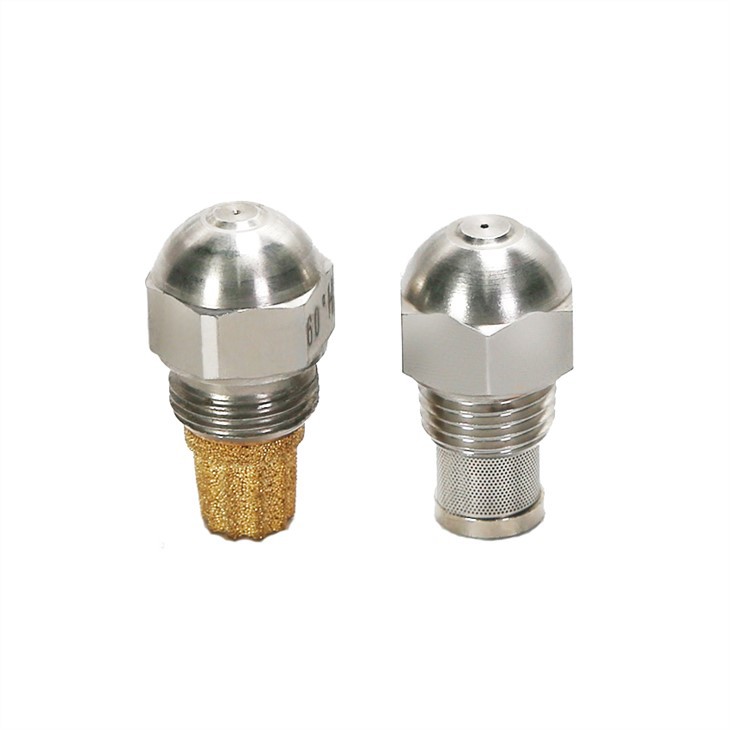

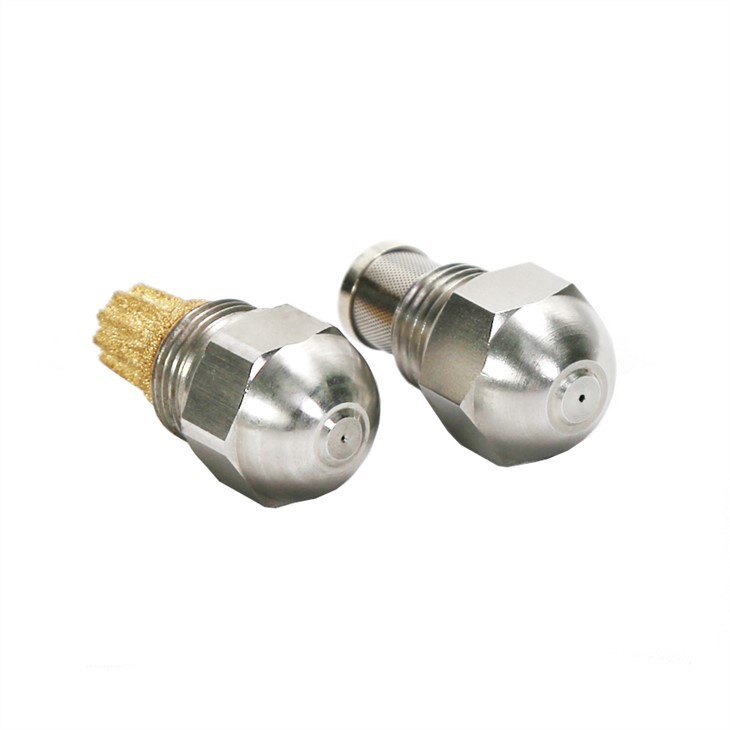

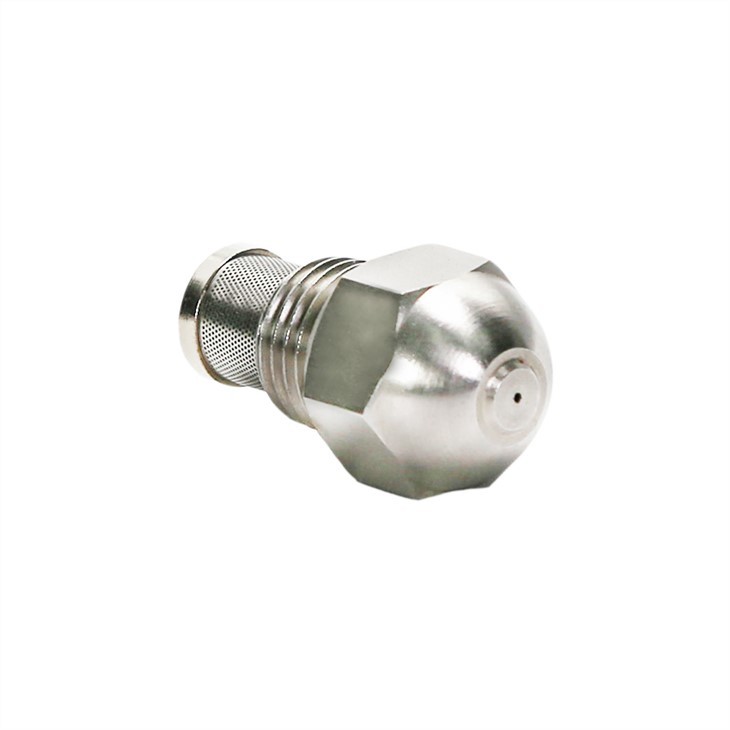

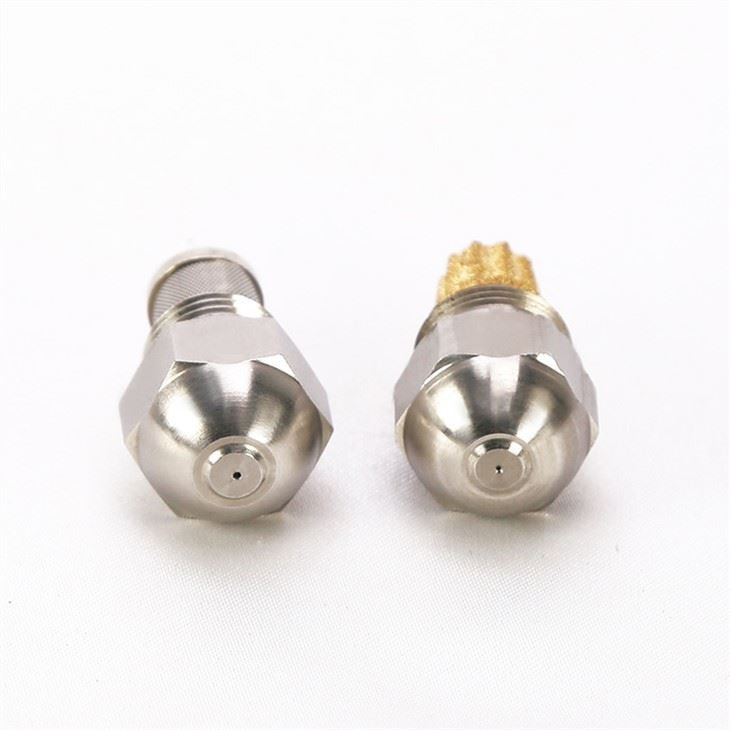

Low Pressure Atomizing Snow Maker Fog Misting Nozzles |
Atomizing Snow Maker Fog Misting Nozzles |
General Application
• Snow making
• Oil Burning
• Humidification
• Fog cannon
• Liquid spraying
• Flue gas evaporating cooling
• Artificial fog
Description
| Model |
RY |
|
Inlet connection |
9/16″; 1/4″ |
|
Orifice dia. |
1.8mm/1.7mm/1.6mm/1.5mm/1.4mm/1.3mm/1.2mm/1.1mm/1mm/0.9mm/0.8mm /0.7mm/0.6mm/0.5mm/0.4mm/0.3mm |
|
Water pressure |
25bar/20bar/15bar/10bar/7bar/5bar/3bar/2bar/1.5bar |
|
Spray angle |
80°/70°/60°/50°/45°/30° |
Parameter
| Thread Size |
Orifice Dia. |
Droplet size |
Filter size |
Flow rate (L/min) |
Spray angle ( O ) |
|||||||||
|
mm |
(μm) |
(mesh) |
1.5bar |
2bar |
3bar |
5bar |
7bar |
10bar |
15bar |
20bar |
25bar |
3bar |
10bar |
|
|
1/4” |
0.3 |
50 |
120 |
— |
— |
0.05 |
0.06 |
0.07 |
0.08 |
0.10 |
0.12 |
0.14 |
30 |
45 |
|
0.4 |
60 |
120 |
— |
— |
0.06 |
0.08 |
0.09 |
0.11 |
0.13 |
0.15 |
0.16 |
30 |
45 |
|
|
0.5 |
70 |
100 |
— |
— |
0.08 |
0.10 |
0.12 |
0.14 |
0.17 |
0.20 |
0.22 |
45 |
60 |
|
|
0.6 |
70 |
100 |
— |
0.10 |
0.13 |
0.16 |
0.20 |
0.25 |
0.30 |
0.35 |
0.40 |
50 |
70 |
|
|
0.7 |
80 |
100 |
0.14 |
0.16 |
0.20 |
0.26 |
0.30 |
0.35 |
0.43 |
0.49 |
0.55 |
50 |
70 |
|
|
0.8 |
80 |
100 |
0.22 |
0.25 |
0.30 |
0.38 |
0.45 |
0.53 |
0.66 |
0.74 |
0.82 |
60 |
70 |
|
|
0.9 |
90 |
50 |
0.29 |
0.33 |
0.40 |
0.50 |
0.60 |
0.71 |
0.86 |
0.99 |
1.10 |
60 |
70 |
|
|
1.0 |
110 |
50 |
0.36 |
0.41 |
0.50 |
0.64 |
0.75 |
0.89 |
1.08 |
1.23 |
1.37 |
60 |
80 |
|
|
1.1 |
120 |
50 |
0.43 |
0.49 |
0.60 |
0.77 |
0.90 |
1.06 |
1.29 |
1.48 |
1.65 |
60 |
80 |
|
|
1.2 |
130 |
50 |
0.58 |
0.66 |
0.80 |
1.02 |
1.20 |
1.42 |
1.72 |
1.97 |
2.20 |
60 |
80 |
|
|
1.3 |
140 |
50 |
0.72 |
0.82 |
1.00 |
1.28 |
1.50 |
1.77 |
2.15 |
2.47 |
2.74 |
60 |
80 |
|
|
1.4 |
140 |
50 |
0.86 |
0.99 |
1.20 |
1.53 |
1.80 |
2.13 |
2.58 |
2.96 |
3.29 |
80 |
80 |
|
|
1.5 |
150 |
50 |
1.01 |
1.15 |
1.40 |
1.79 |
2.10 |
2.48 |
3.01 |
3.46 |
3.84 |
80 |
80 |
|
|
1.6 |
180 |
50 |
1.15 |
1.32 |
1.60 |
2.04 |
2.40 |
2.84 |
3.44 |
3.95 |
4.39 |
80 |
80 |
|
|
1.7 |
210 |
50 |
1.29 |
1.48 |
1.80 |
2.20 |
2.69 |
3.19 |
3.87 |
4.44 |
4.94 |
80 |
80 |
|
|
1.8 |
230 |
50 |
1.45 |
1.70 |
2.08 |
2.40 |
3.02 |
3.65 |
4.25 |
4.98 |
5.50 |
80 |
80 |
|
Ordering information
|
RY |
1/4″ |
SS |
0.3 |
|
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
Thread Size |
Material |
Orifice dia. |
