Features
Features
• Spray round shape mist or fog under low pressure with pressure feed.
• Air and liquid pressure is usually 2 -3 bar.
• Adjustable flow rate allows different choices of capacities.
|

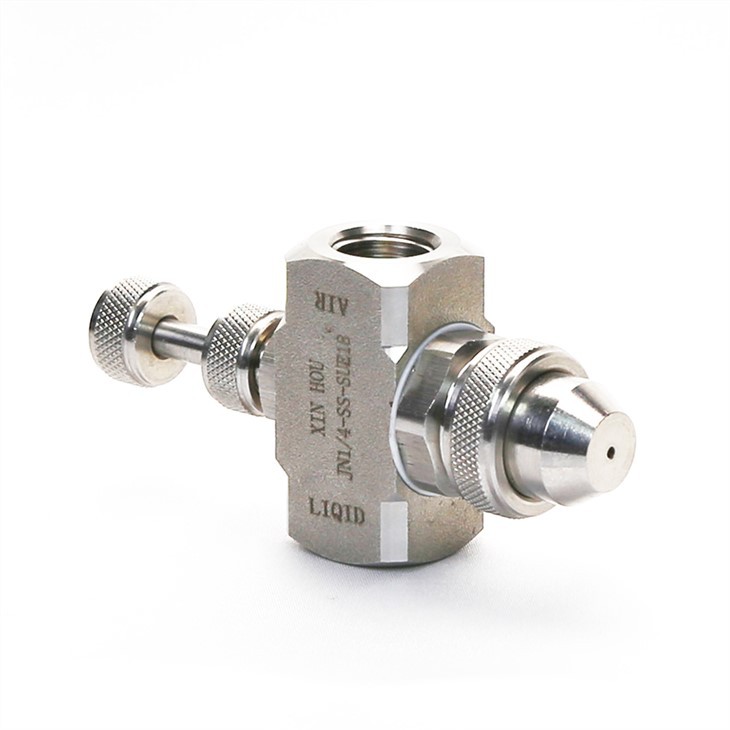

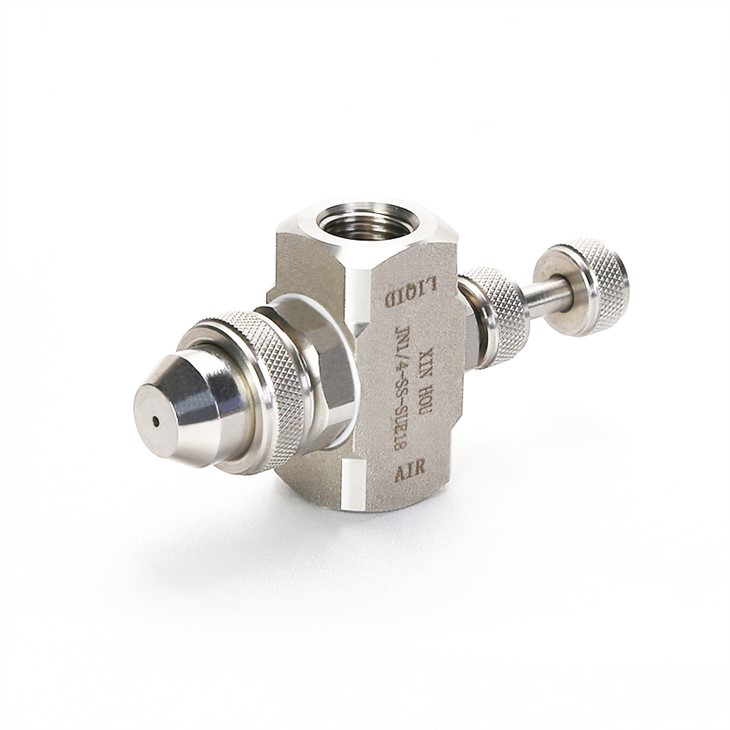

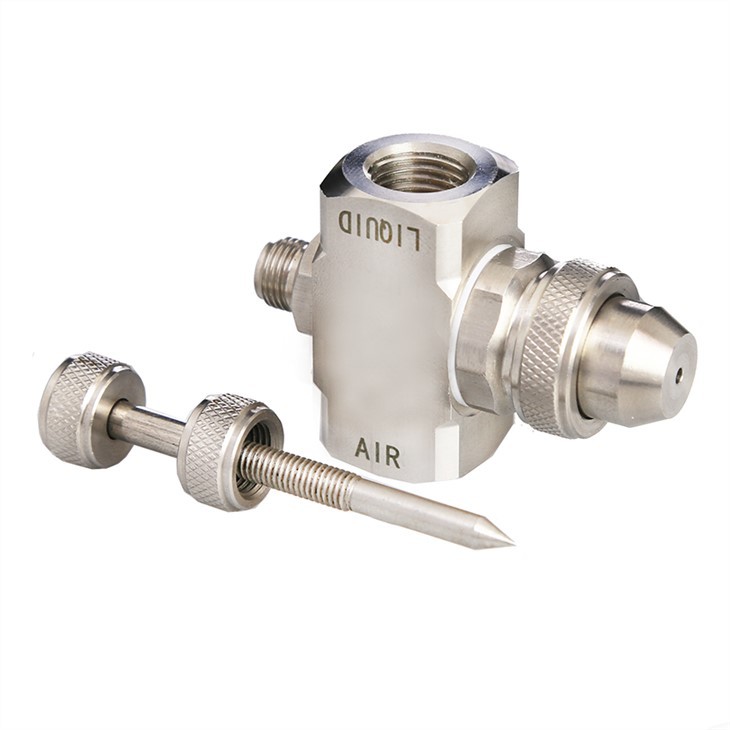

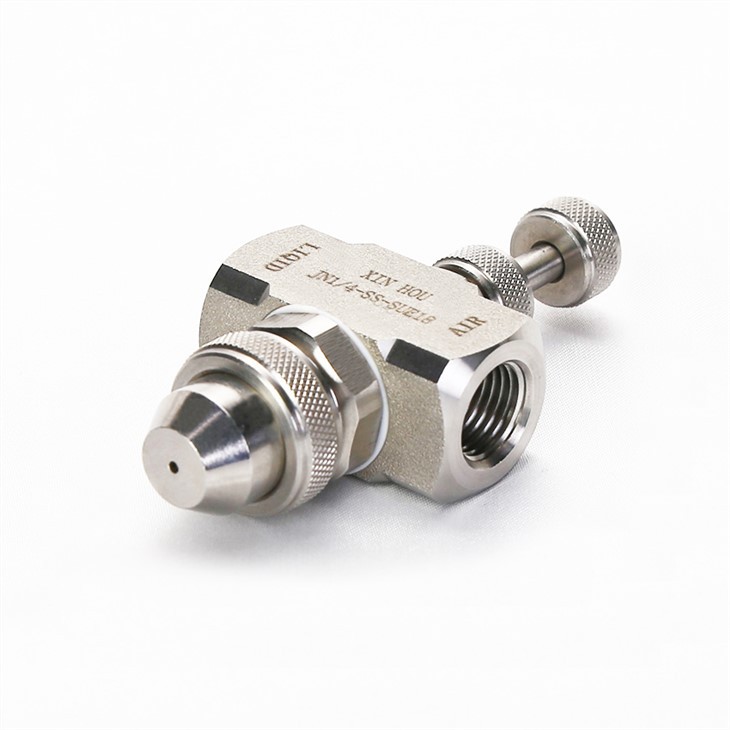

Internal Mix Full Cone Air Atomizing Nozzles |
Full Cone Air Atomizing Nozzles |
General Application
1) Coating, cooling, humidifying
2) Gas cooling
3) Lubricating, moistening
4) Misting, fogging
5) Dust suppression
Description
|
Model |
JN |
|
Type |
Adjustable |
|
Spray pattern |
Round |
|
Working way |
Pressure |
|
Mix |
Internal |
Parameter
|
Spray Set-up No. |
Liquid cap / Air cap No. |
Liquid capacity(L/h) & Air capacity(L/min) |
Spray distance |
||||||||||
|
1.5bar ( liquid) |
2bar ( liquid) |
3bar ( liquid) |
Air pressure (bar) |
Liquid pressure (bar) |
D（m) |
||||||||
|
Air pressure （bar) |
Water capacity |
Air capacity |
Air pressure （bar) |
Water capacity |
Air capacity |
Air pressure （bar) |
Water capacity |
Air capacity |
|||||
|
SU11 |
Liquid cap 2050 |
1.1 |
6.4 |
11.9 |
1.4 |
6.4 |
13.9 |
2.7 |
6.2 |
23 |
– |
– |
– |
|
1.4 |
5.0 |
15 |
1.7 |
5.5 |
16.7 |
2.8 |
5.7 |
25 |
0.85 |
0.7 |
2.7 |
||
|
1.7 |
4.1 |
18.7 |
2.0 |
4.5 |
19.8 |
3.0 |
5.2 |
27 |
1.7 |
1.5 |
3.0 |
||
|
1.8 |
3.4 |
20 |
2.2 |
3.4 |
24 |
3.1 |
4.7 |
29 |
2.5 |
2.0 |
3.4 |
||
|
2.0 |
3.0 |
23 |
2.4 |
3.0 |
26 |
3.2 |
4.3 |
31 |
3.1 |
3.0 |
3.8 |
||
|
2.1 |
2.6 |
25 |
2.5 |
2.5 |
28 |
3.4 |
3.9 |
33 |
4.5 |
4.0 |
4.4 |
||
|
2.2 |
2.0 |
27 |
2.7 |
2.3 |
31 |
3.7 |
3.0 |
38 |
– |
– |
– |
||
|
SU12A |
Liquid cap 2050 |
1.4 |
5.7 |
27 |
1.7 |
6.7 |
29 |
2.2 |
9.2 |
34 |
– |
– |
– |
|
1.5 |
5.2 |
29 |
1.8 |
6.4 |
31 |
2.5 |
8.2 |
39 |
0.85 |
0.7 |
3.7 |
||
|
1.7 |
4.8 |
32 |
2.0 |
5.9 |
34 |
2.8 |
7.2 |
44 |
1.5 |
1.5 |
4.0 |
||
|
1.8 |
4.3 |
35 |
2.1 |
5.2 |
37 |
3.0 |
6.7 |
47 |
2.4 |
2.0 |
4.6 |
||
|
2.0 |
3.9 |
37 |
2.2 |
4.8 |
40 |
3.1 |
6.3 |
49 |
3.0 |
3.0 |
4.6 |
||
|
2.1 |
3.4 |
40 |
2.4 |
4.3 |
43 |
3.2 |
5.9 |
52 |
3.9 |
4.0 |
5.2 |
||
|
– |
– |
– |
2.7 |
3.6 |
48 |
3.4 |
5.5 |
55 |
– |
– |
– |
||
|
SU12 |
Liquid cap 2850 |
1.7 |
8.4 |
31 |
2.0 |
10.7 |
33 |
2.7 |
16.5 |
37 |
– |
– |
– |
|
1.80 |
7.5 |
35 |
2.1 |
9.8 |
37 |
2.8 |
15.4 |
38 |
1.5 |
0.7 |
4.0 |
||
|
2 |
7.0 |
37 |
2.4 |
8.2 |
42 |
3.1 |
13.6 |
43 |
2.5 |
1.5 |
4.3 |
||
|
2.2 |
5.7 |
44 |
2.7 |
6.8 |
48 |
3.4 |
11.8 |
49 |
3.0 |
2.0 |
4.6 |
||
|
2.5 |
4.8 |
49 |
3.0 |
5.9 |
55 |
3.7 |
10.4 |
55 |
3.4 |
3.0 |
4.9 |
||
|
2.8 |
4.1 |
54 |
3.2 |
5.0 |
59 |
3.9 |
9.1 |
61 |
4.2 |
4.0 |
5.3 |
||
|
3.1 |
3.6 |
59 |
3.5 |
4.1 |
65 |
4.2 |
7.9 |
65 |
– |
– |
– |
||
|
SU22B |
Liquid cap 40100 |
2.2 |
17.8 |
116 |
2.8 |
20 |
136 |
3.4 |
32 |
149 |
– |
– |
– |
|
2.5 |
13.1 |
130 |
3.1 |
16.3 |
149 |
3.9 |
25 |
170 |
1.7 |
0.7 |
4.9 |
||
|
2.8 |
9.5 |
143 |
3.4 |
11.9 |
163 |
4.6 |
15.9 |
205 |
2.8 |
1.5 |
6.1 |
||
|
3.1 |
7.0 |
157 |
3.9 |
7.0 |
187 |
5.3 |
9.1 |
240 |
3.9 |
2.0 |
6.7 |
||
|
3.4 |
4.9 |
171 |
4.2 |
4.7 |
205 |
5.6 |
6.8 |
255 |
5.3 |
3.0 |
7.9 |
||
|
3.5 |
4.2 |
178 |
4.6 |
3.0 |
220 |
6.0 |
5.0 |
275 |
6.0 |
4.0 |
9.1 |
||
|
– |
– |
– |
– |
– |
– |
6.3 |
3.6 |
290 |
– |
– |
– |
||
|
SU22 |
Liquid cap 60100 |
1.4 |
61 |
69 |
2.1 |
53 |
96 |
2.7 |
80 |
103 |
– |
– |
– |
|
1.5 |
54 |
76 |
2.4 |
41 |
112 |
3.0 |
69 |
117 |
1.0 |
0.7 |
4.9 |
||
|
1.7 |
48 |
85 |
2.7 |
31 |
127 |
3.2 |
59 |
130 |
1.8 |
1.5 |
5.8 |
||
|
1.8 |
41 |
93 |
2.8 |
26 |
136 |
3.5 |
49 |
146 |
2.8 |
2.0 |
6.7 |
||
|
2.0 |
35 |
102 |
3.0 |
22 |
144 |
3.7 |
44 |
154 |
3.5 |
3.0 |
7.0 |
||
|
2.1 |
30 |
110 |
– |
– |
– |
3.8 |
37 |
161 |
4.9 |
4.0 |
8.5 |
||
|
2.2 |
25 |
119 |
– |
– |
– |
3.9 |
35 |
170 |
– |
– |
– |
||
|
SU42 |
Liquid cap 100150 |
1.4 |
125 |
79 |
2.0 |
123 |
108 |
2.2 |
199 |
88 |
– |
– |
|
|
1.5 |
106 |
91 |
2.1 |
108 |
119 |
2.5 |
174 |
110 |
1.0 |
0.7 |
6.1 |
||
|
1.7 |
87 |
105 |
2.2 |
96 |
130 |
2.8 |
146 |
133 |
1.7 |
1.5 |
7.0 |
||
|
1.8 |
70 |
118 |
2.4 |
79 |
143 |
3.1 |
121 |
154 |
2.4 |
2.0 |
7.6 |
||
|
2.0 |
55 |
130 |
2.5 |
64 |
155 |
3.2 |
108 |
166 |
3.1 |
3.0 |
7.9 |
||
|
– |
– |
– |
2.7 |
52 |
166 |
3.4 |
95 |
176 |
3.8 |
4.0 |
9.1 |
||
|
– |
– |
– |
2.8 |
42 |
178 |
3.5 |
84 |
187 |
– |
– |
– |
||
Ordering information
|
JN |
1/4’’ |
SS |
SU11 |
SS |
|
↓ |
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
Thread Size |
Air cap material code |
Spraying devoice No. |
Liquid cap material code |
Application pictures
Dust control
