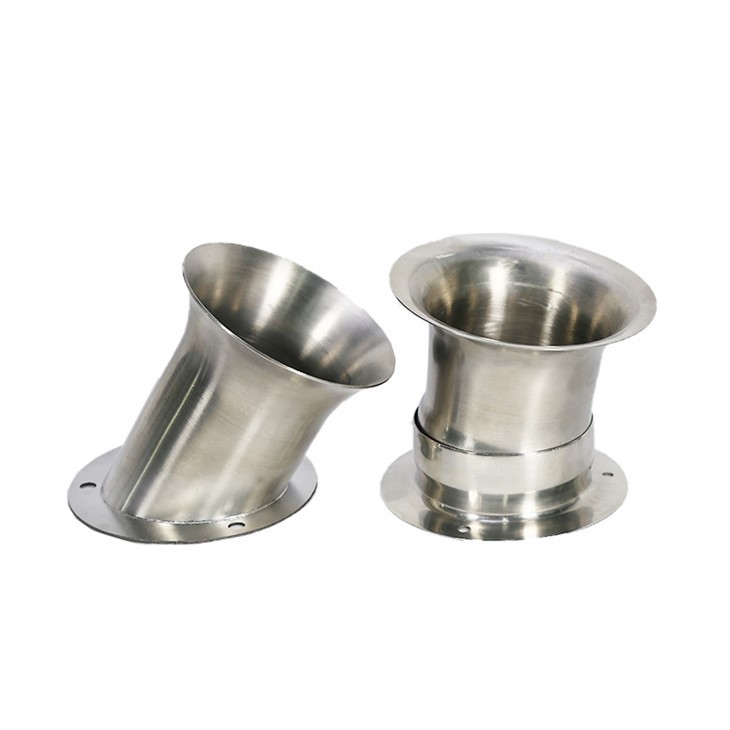

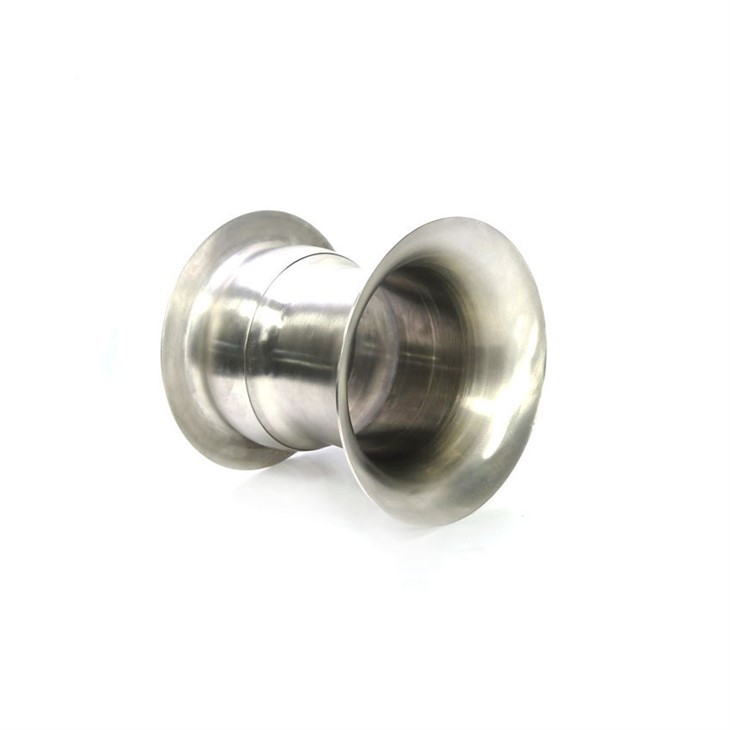

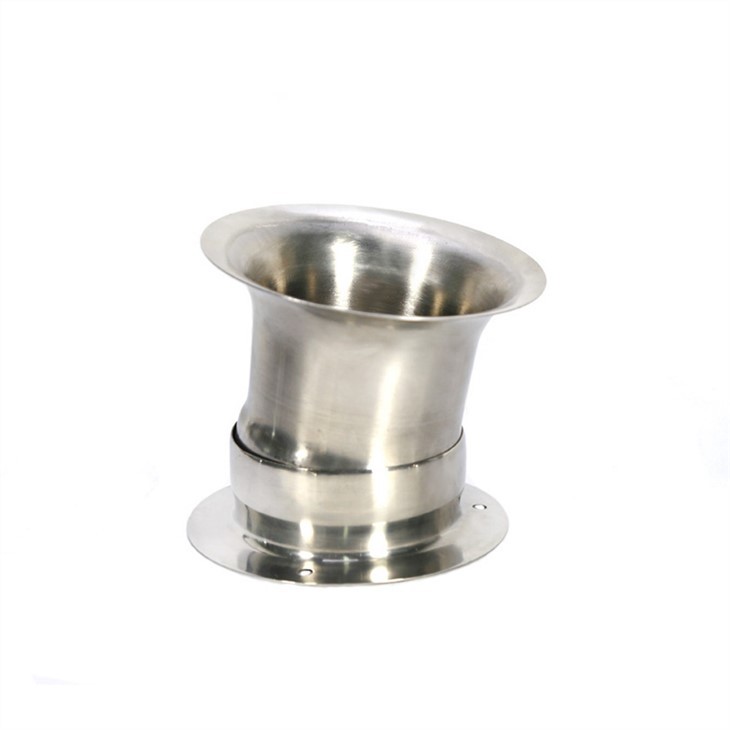

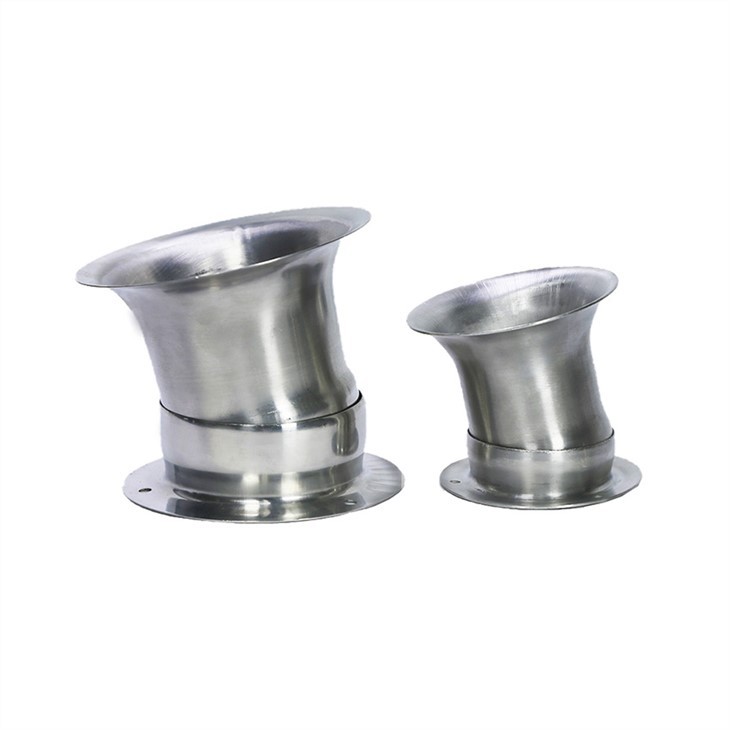

QH Adjustable Strong Hot Air Shower Nozzle
Features
• The typical application of adjustable strong hot air shower nozzle is drying in car coating pretreatment
• We mainly supply Adjustable Strong Hot air Shower Nozzle for car ( Bens , VW etc )coating lines
• Adjustable Strong Hot air Shower Nozzle is a streched or streching parts (streching workpiece ) or metal spining parts or spining workpiece ( spun parts or spun workpiece)
• The flow of hot air spread around quickly to form as air circulation and stirring air
• Stainless steel ( SUS 304), Galvanized steel, Aluminized steel, Aluminium alloy are available.
| Product Name | XINHOU QH Strong Hot Air Shower Nozzle |
| Material | 304 Stainless steel,chrome,aluminum plated sheet,galvanized plated sheet |
| Color | Silver |
| Outter orifice diameter | 40mm.50mm.60mm.70mm.80mm.100mm.150mm.200mm or customize according to your requirements |
| Features | Adjustable angle,high wind speed,low noice |
| Applications | Drying,dust removing,cleaning,sanitization spraying |
| Customized service | Custom nozzle designs are available upon request |
|
Adjustable Strong Hot Air Shower Nozzle |
Strong Hot Air Shower Nozzle |
General Application
1) Drying
2) Cooling
Description
|
Model |
QH;QHN;QY |
| QH | QHN | QY |
| Adjustable | Fixed | Beveled |
Performance Data
|
Model Spec. |
QH-70 |
QH-100 |
|
|
effective area |
0.00385 |
0.0085 |
|
|
Air volume m³/h |
V=2m/h |
27 |
58 |
|
V=3m/h |
42 |
92 |
|
|
V=4m/h |
56 |
123 |
|
|
V=5m/h |
70 |
154 |
|
|
V=6m/h |
84 |
184 |
|
|
V=7m/h |
98 |
215 |
|
Sizes and Materials available
|
Style NO. |
Size Available |
||||||
|
QH |
QH-50 |
QH-60 |
QH-70 |
QH-80 |
QH-100 |
QH-150 |
QH-200 |
|
C=50mm |
C=60mm |
C=70mm |
C=80mm |
C=100mm |
C=150mm |
C=200mm |
|
|
Material Available |
SUS304 / Galvanized Steel / Aluminum /Aluminum Steel |
Aluminum /Aluminium Steel |
|||||
|
QY |
QY-70 |
QY-100 |
|
C=70mm |
C=100mm |
|
|
Material |
SUS304 |
|
|
QHN |
QHN-65 |
QHN-100 |
|
C=65mm |
C=100mm |
|
|
Material |
SUS304/Galvanized/ Aluminum/Aluminium Steel |
|
Ordering Information
|
QH |
100 |
SS |
| Style No. |
size |
Material |
